External Goods Lift London
|External Goods Lift London

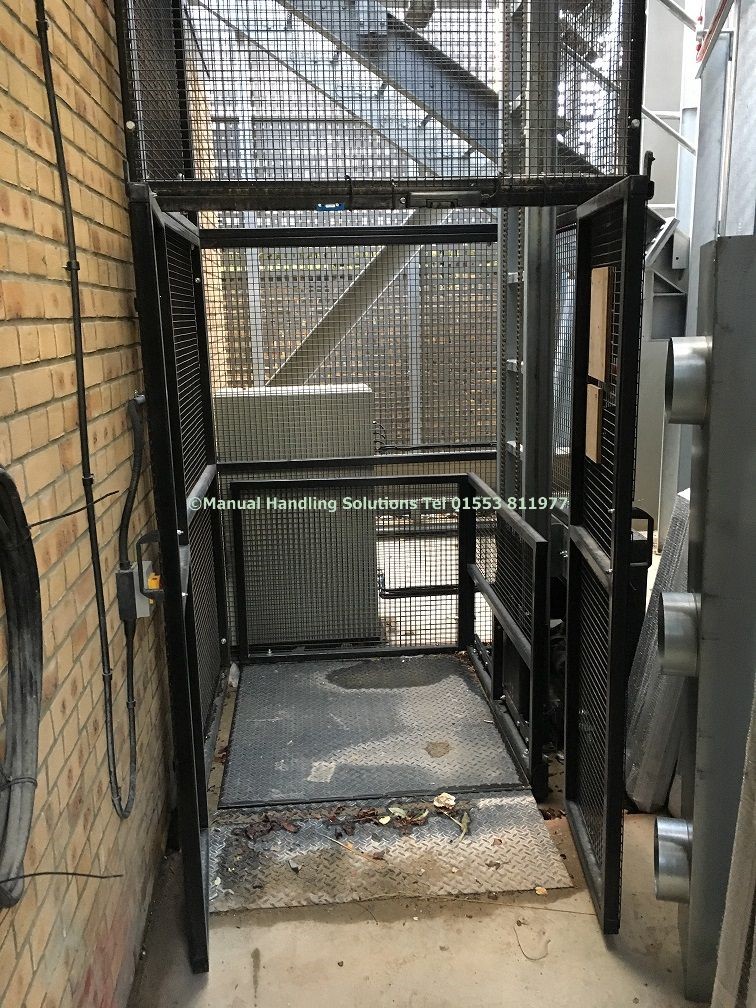

Bespoke External Goods Lift with maximum working load 250kg installed Queen Mary University of London, enclosed in a self-supporting mesh shaft. The platform will be 1200mm x 1100mm and guarded 900mm high on the non-loading edges.
At the entrance to the lift at both levels there will be 2000mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed.
At the lower level a 500mm long fixed ramp will be provided to assist loading on to the 50mm deep platform. The lift will be suitable for an external installation power supply 20 amp, 240 volt, single-phase supply terminated in a double pole switch at the lower level.
Control is via a hold to run, push button control station adjacent to the gates at both levels. The power pack will be in a lock up box at the lower level.
Installed: Queen Mary University Of London, Bancroft Road. London, E1 4NS
