Goods Lift Basildon Essex

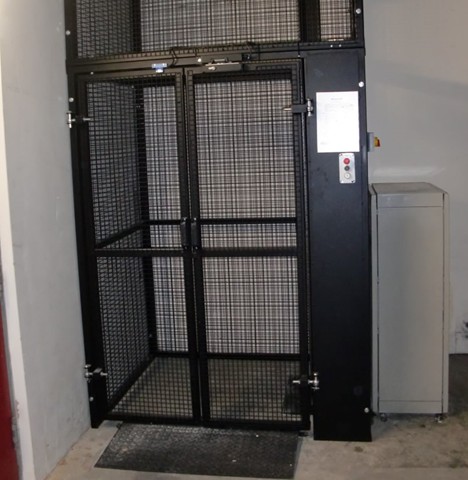

Goods Lift, with maximum working load 250kg, enclosed in a self-supporting mesh shaft. The platform will be 1000mm x 1000mm and guarded 900mm high on the non-loading edges. At the entrance to the lift at both levels there will be 2000mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed. At the lower level a 500mm long fixed ramp will be provided to assist loading on to the 50mm deep platform.

Power; 20 amp, 240 volt, single-phase supply is required terminated in a double pole switch at the lower level. Control is via a hold to run, push button control station adjacent to the gates at both levels. Included; for the power pack to be positioned in a weatherproof lockable box as it could be exposed to the elements when the shutter doors are open.

Installed, Southfields Industrial Estate, Hornsby way, Laindon, Basildon, Essex, SS15 6TA
