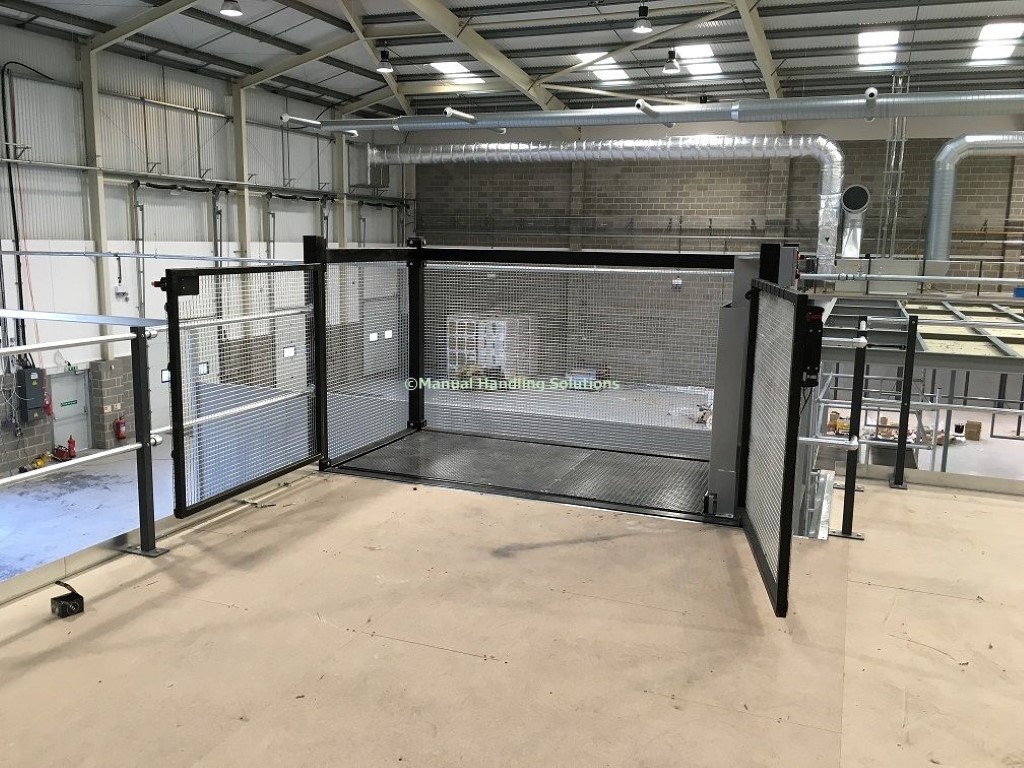

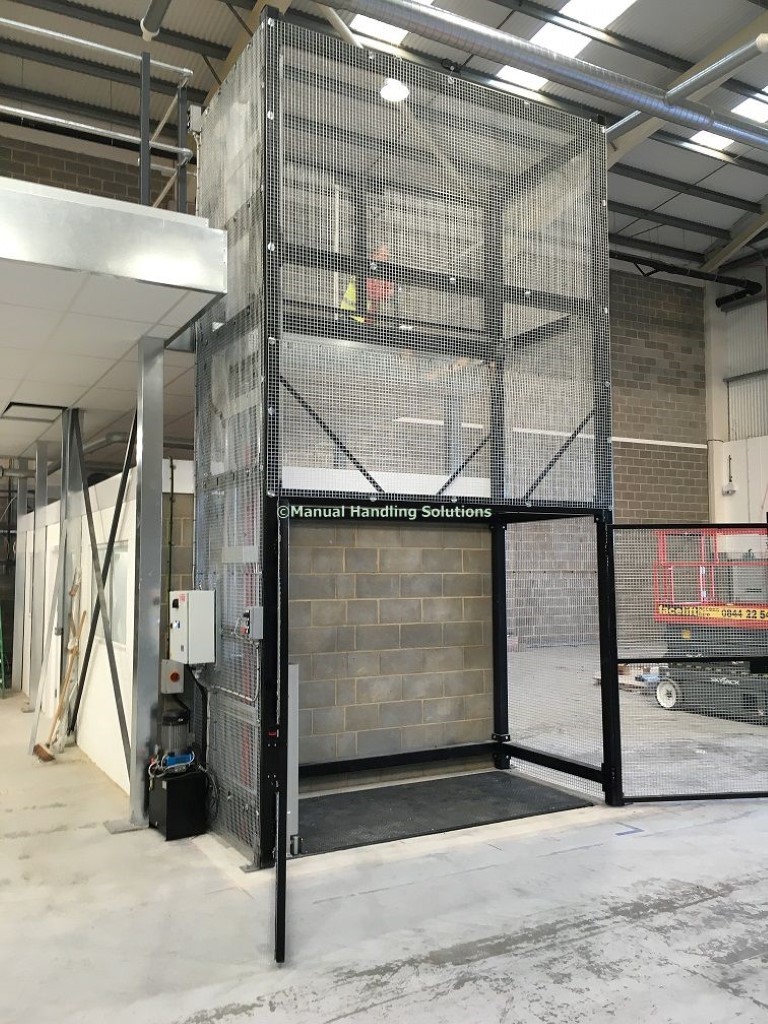

Heavy Duty Goods Lift 1000kg capacity recessed in a 150mm pit, lift height 4000mm. Platform size Width 1,250mm Depth 2,800mm (useable depth 2,500mm) Platform Material Anti-skid checker plate.

A fully self-supporting lift structure, manufactured from 100mm box section steel with 25mm² galvanised mesh infill sides and double side-hinged loading gates at each level. The gates at lower level are 2200mm high fitted with a heavy duty interfaced lock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if a loading gate on any level is not fully closed.

Upper gates and guarding will finish 1500mm high above floor level.  Power supply 3 phase, 415v, 50Hz, 3Kw with Low voltage ‘push to go’ push buttons fitted with key lock and emergency stop at each level. Goods lift finished Light Grey (RAL 9006) Dark Grey (RAL 7016). Lift speed 6cm / per sec. for safety the lift is fitted with shoot bolts that lock the platform into the main ring beam of the support structure making it safe for personnel to walk on.
