Goods Lift installed Exeter Devon

Goods Lift installed in Exeter Devon

Goods Lift installed Exeter Devon

Goods Lift Pit Edge Goods Lifts Devon Goods Lifts Exeter Devon Goods Lifts Devon Goods Lift Exeter Goods Lift Goods Lift Devon Goods Lift Exeter Goods Lift Pit lightbox MACby v6.1

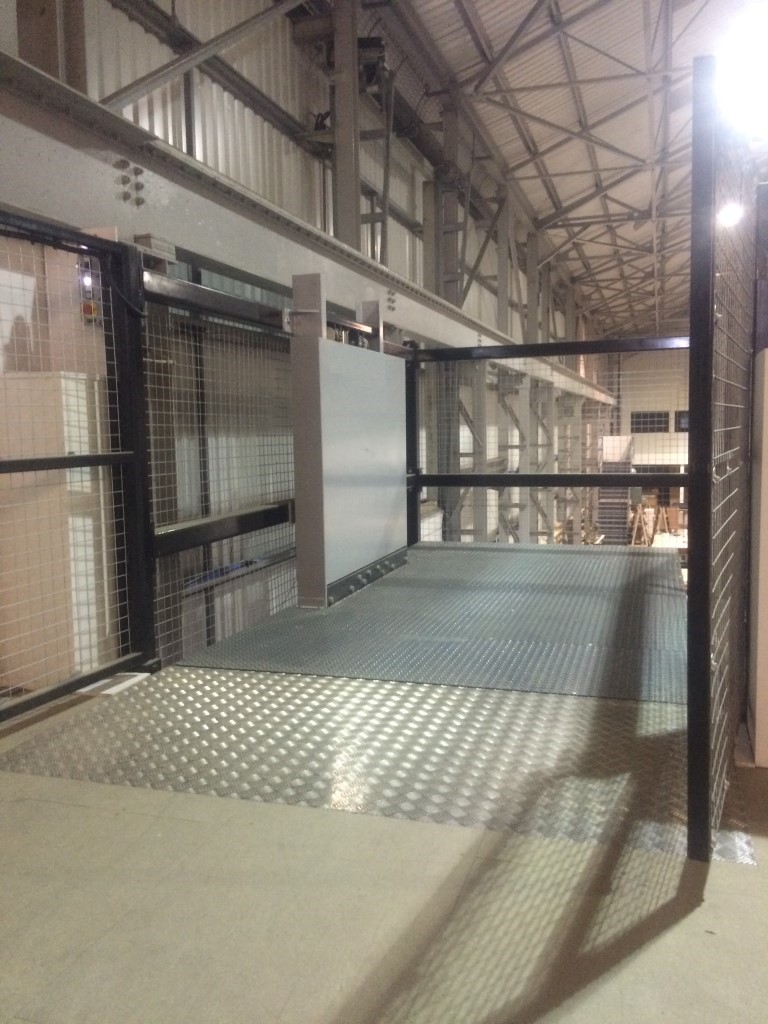

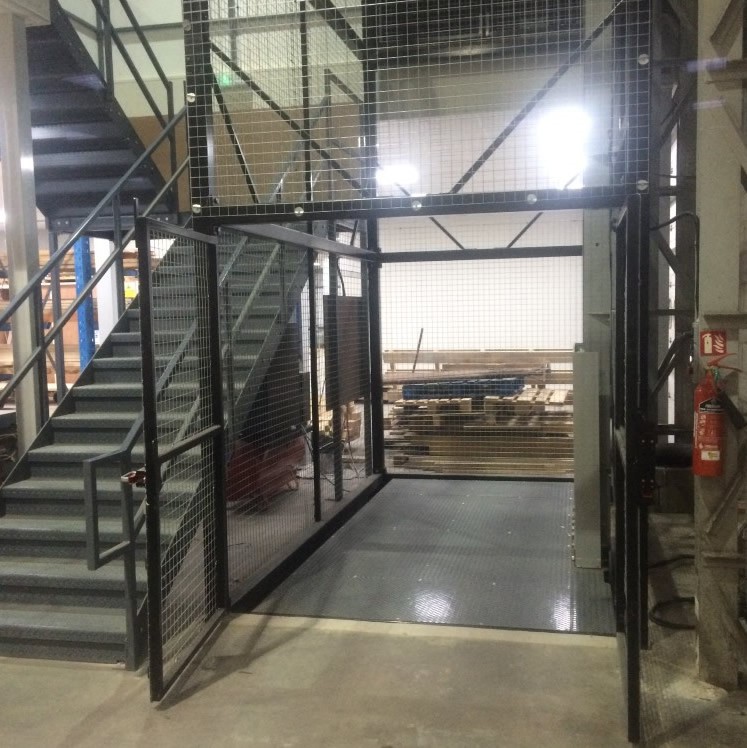

Goods Lift with 1000kg SWL Capacity with a working platform size 3800mm x 1755mm, platform recessed in a 200mm pit (by others). Finished floor height 4280mm and platform anti-skid checker plate. Goods are loaded on one short side at lower level and exit at opposite short side at upper level (through car lift). Goods Lift supplied with Low voltage ‘Press to Go’ push buttons fitted with key lock and emergency stop at each level, electrics 3 phase, 415v, 50Hz, 5.5Kw. Lift is finished in Light Grey (RAL 9006) Dark Grey (RAL 7016). Shot Bolts – supplied as standard, these lock the platform in the raised position.

Goods Lift supplied with fully self-supporting lift structure, manufactured from box section steel with 25mm² galvanised mesh infill sides and single opening gates on one short side at each level .The gates are fitted with a light duty interfaced lock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if a loading gate on any level is not fully closed. Lift fitted with standard height guards – gates – barrier at upper level at 1500mm. Gate height at lower level 2300mm.

EC Certificate of Conformity (According to Appendix 11 of the EC directive 98/37/EECO) is supplied confirming the equipment offered conforms to the essential requirements indicated by:

  • The Machine Directive 98/37/CE
  • The Low-Tension Directive 73/23/EEC and its subsequent amendments 93/68
  • Safety In compliance with E.C rules. (Machinery Directive 2006/42/EC)
  • The following rules are also taken into consideration: UNI EN 1493 (as much as can be applied)-EN 292/1/2-EN294-EN349-EN418-EN982-EN 593-EN 594-1-EN 1037-EN 1088-EN 60204-1
  • Delivery, installation – Touch Design Group, 6 Marsh Green Road, Exeter, Devon, EX2 8NY
