Goods lift installed in Salford Manchester

Goods lift installed in Salford Manchester Goods lift installed in Salford Manchester

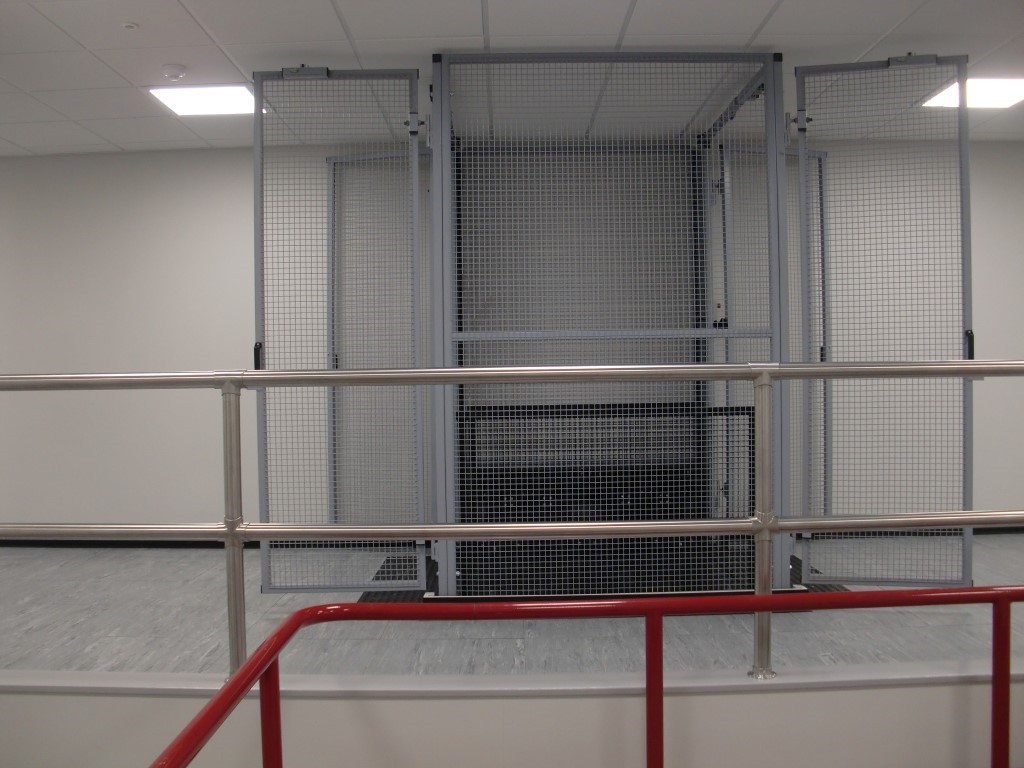

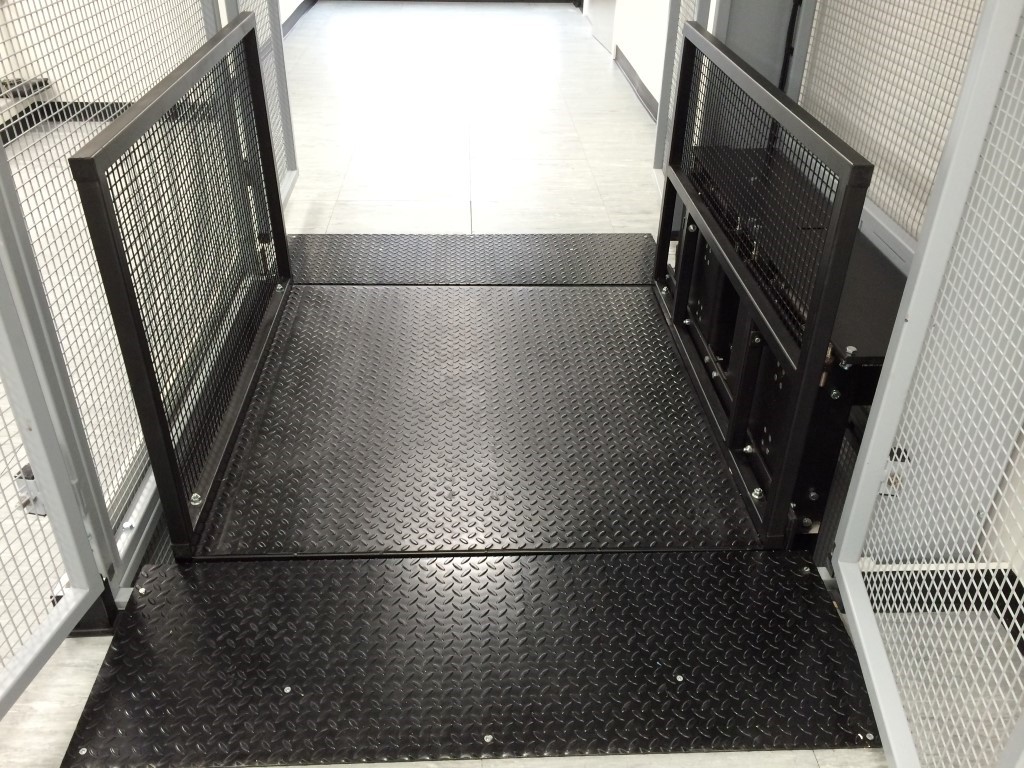

Goods Lift, with maximum safe working load 500kg, Lift Height 4240mm and lift is enclosed in a self-supporting mesh shaft. The platform will be 1250mm x 1350mm and guarded 900mm high on the two non-loading edges. This is the maximum platform size that is possible within the existing structural area of 1950mm x 1700mm.

At the entrance to the lift at the bottom level there will be 2500mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed.

At the top level there will be two sets of double doors, allowing load through access, these doors will be wired in parallel to either side can be opened when the lift is at the upper level.

At the lower level a 50mm deep pit, should be provided by the main contractor to allow level access on to the platform. Good Lift will be painted Black and the mesh panelling, guard frames will be Power coated RAL 7040 Grey.

Power supply 2.2kw, 415 volt, three-phase and neutral supply is required terminated in an isolator at the lower level. Control is via a hold to run, push button control station adjacent to the gates at both levels.

Goods Lift Installed, Virgin Media, 400 Metroplex Business Park, ,Broadway, Salford, M50 2UE

Main Contractor, Lodestone Projects Ltd, Leigh House, Varley Street, Leeds, LS28 6AN
