Goods Lift Rusden
350kg through car twin mast hydraulic Goods Lift installed Rushden Northants with a finished floor level 2637mm and platform size 1100mm x 1650mm fitted with 1100mm high infilled panels on the non-loading sides and twin opening interlocked gates finished in Traffic Yellow RAL 1023

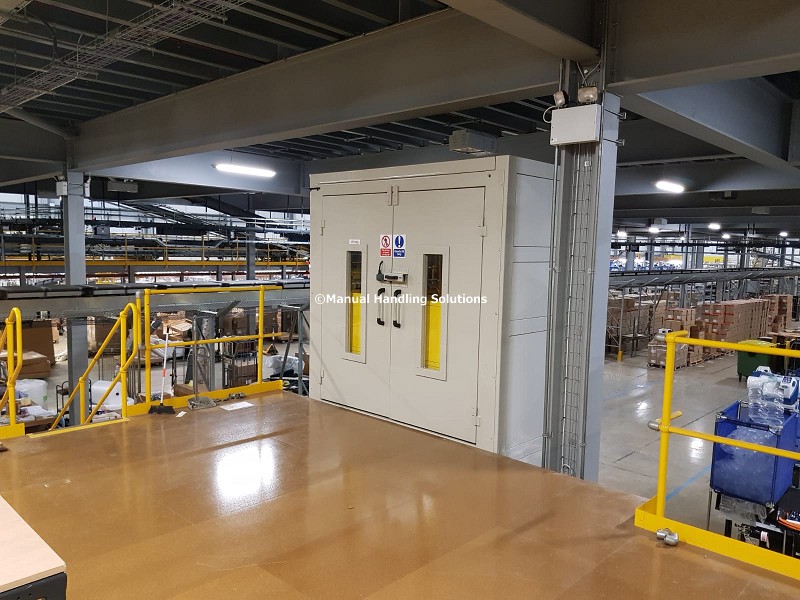

A free standing self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Silky Grey RAL 7044. Goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper level structure is 2200mm.
Goods lift fitted with safety shoot bolts which allow for the operator to enter the lift platform safely while the lift is docked at the upper level, also “Press to Go” one touch controls with emergency stop at both levels. At the lower level a fixed ramp 1250mm long x 1650mm wide will be provided to assist loading on to the 120mm deep platform finished Traffic Yellow RAL 1023.
To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 2.2Kw control voltage 24 volt IP55.
- Emergency lowering system when power is cut off
- Pre wired control box included magnetic starter and overload fuse
- Upper level travel limit switch and overload relief valve
- Hydraulic cylinders feature emergency velocity fuse if line breaks
- Control points are fitted to both ground and upper floor levels
- The hydraulic power pack and electrical system housed separately at ground level
- The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
- Installation; 1 Spire Road, Rushden, Northamptonshire, NN10 0FN
lightbox MACby VisualLightBox.com v6.1
Manual Handling Solutions offer a wide range of products which include hydraulic goods lift, industrial material lifts, goods lift, self-supported structure goods lift, goods elevator and cage goods lifts. Hydraulic Goods Lifts offer an affordable, efficient option to material handling designed to be the most cost-effective and safest way to move materials up or down one or multi floor levels. If you’re lifting heavy materials or moving product from one level to another, a goods lift is essential for safe, efficient, and productive daily operation. Our mezzanine goods lifts are self-supporting, durable, reliable and don’t require a floor pit.
The simple installation process, combined with no requirement for a pit to be created, can often be a significant financial consideration for businesses requiring a hydraulic goods lift.
If you have any questions about our goods lifts, or would like assistance with finalising your goods lift design, Manual Handling Solutions are available to answer any queries you may have.
We’re happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.
Our goods lifts range of hydraulic goods lifts are ideal for supermarkets, warehouses, factories, restaurants, pubs, museums, theatres, hotels, retail in basement or light-well locations.
Goods Lift covering Rushden, Higham Ferrers, Irthlingborough, Irchester, Raunds, Wellingborough.
