Goods Lift Wiltshire

 Goods Lift Wiltshire Goods Lift Wiltshire

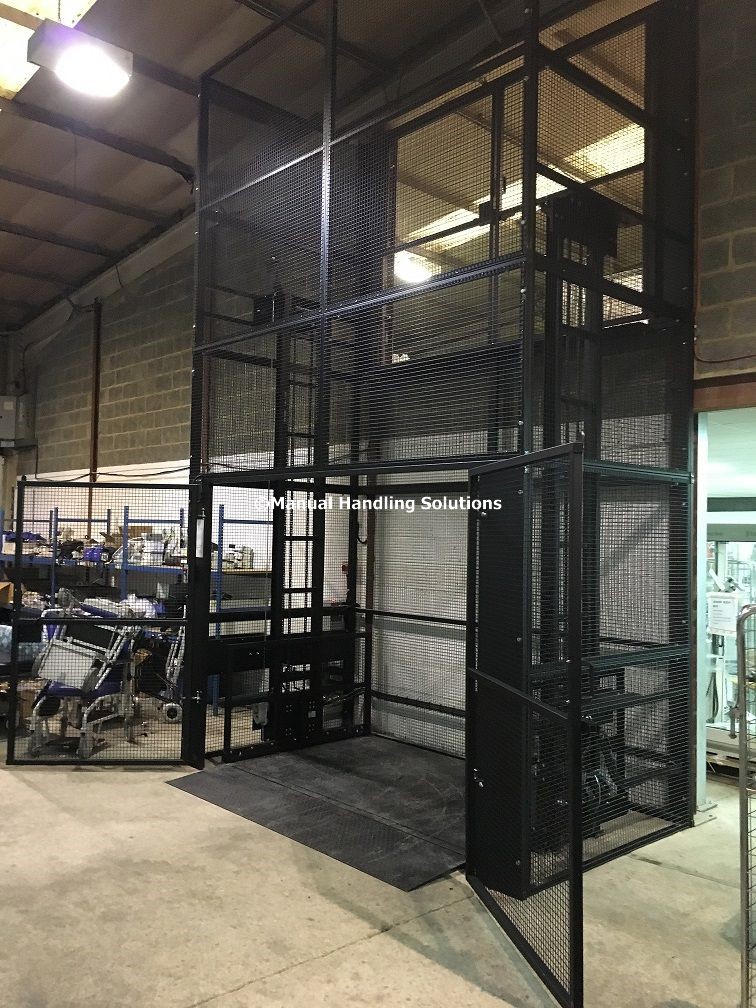

Goods Lift installed Malmesbury, Wiltshire, with maximum working load 500kg, enclosed in a self-supporting mesh shaft lift height 3294mm. Platform size 2500mm x 1500mm and guarded 900mm high on the non-loading edges.

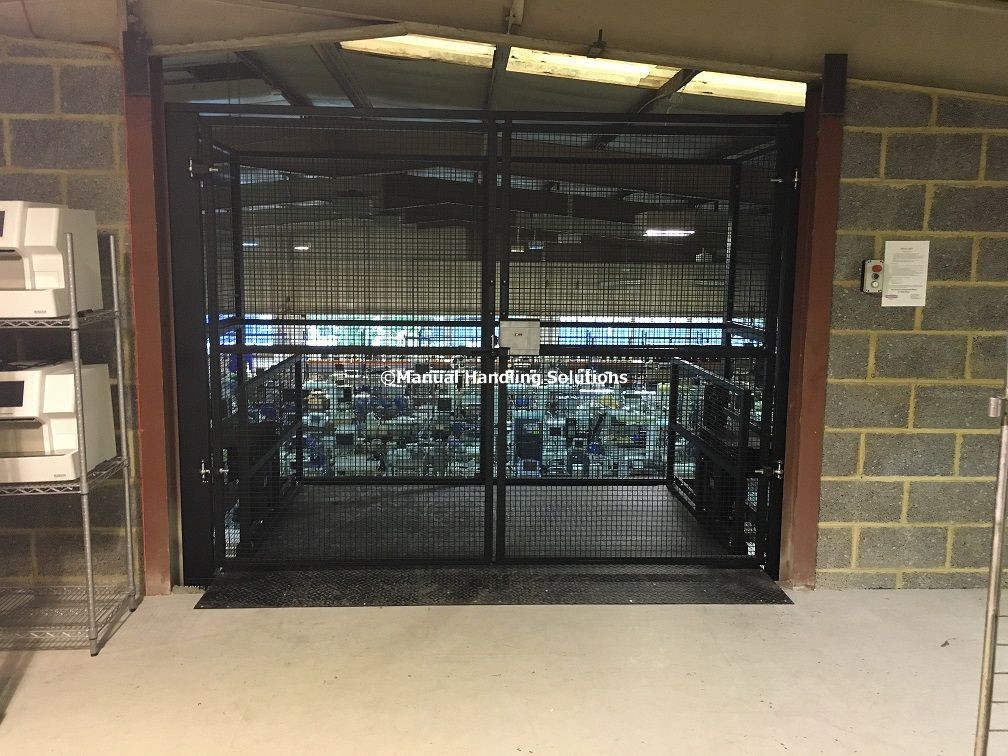

At the entrance to the lift at both levels there will be 2200mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed.

At the lower level a 500mm long fixed ramp will be provided to assist loading on to the 50mm deep platform.  A 2.2kw, 415 volt, three-phase and neutral supply is required terminated in an isolator at the lower level.

Control is via a hold to run, push button control station adjacent to the gates at both levels.

CE Mark and Declaration of Conformity, Operation and Maintenance Manual issue on completion LOLER Report of Thorough Examination and Test issued on commissioning

The 12 months Statutory Inspections and maintenance ensures continued safe and reliable use of the equipment and full compliance with current legislation.  In brief it comprises an annual service with thorough examination and test, a six-month inspection and test and all labour or callout charges.

Remember: Current legislation required that each item of lifting equipment be Thoroughly Examined at least once in every 12 month period by a competent person. Additionally, the lifting equipment must be inspected at suitable intervals between Thorough Examinations. Our service agreements ensure safe, reliable use of the equipment and full compliance with current legislation.
