Goods Lift Wymondham Norfolk East Anglia

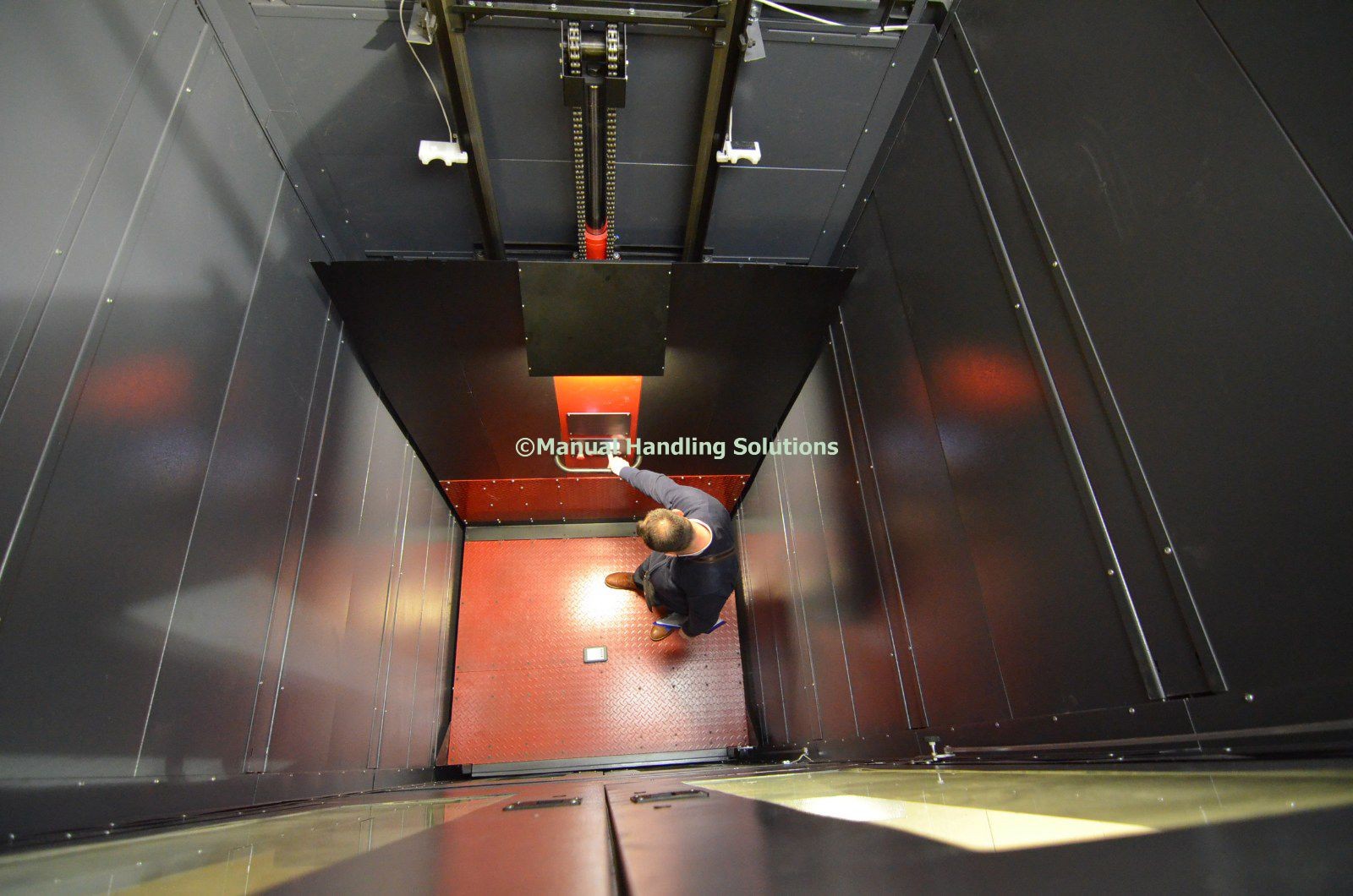

Goods Lift 500kg with Man on Board controls (Trained Attendant) and installed in a 100mm pit (by others) installed Wymondham Norfolk East Anglia.

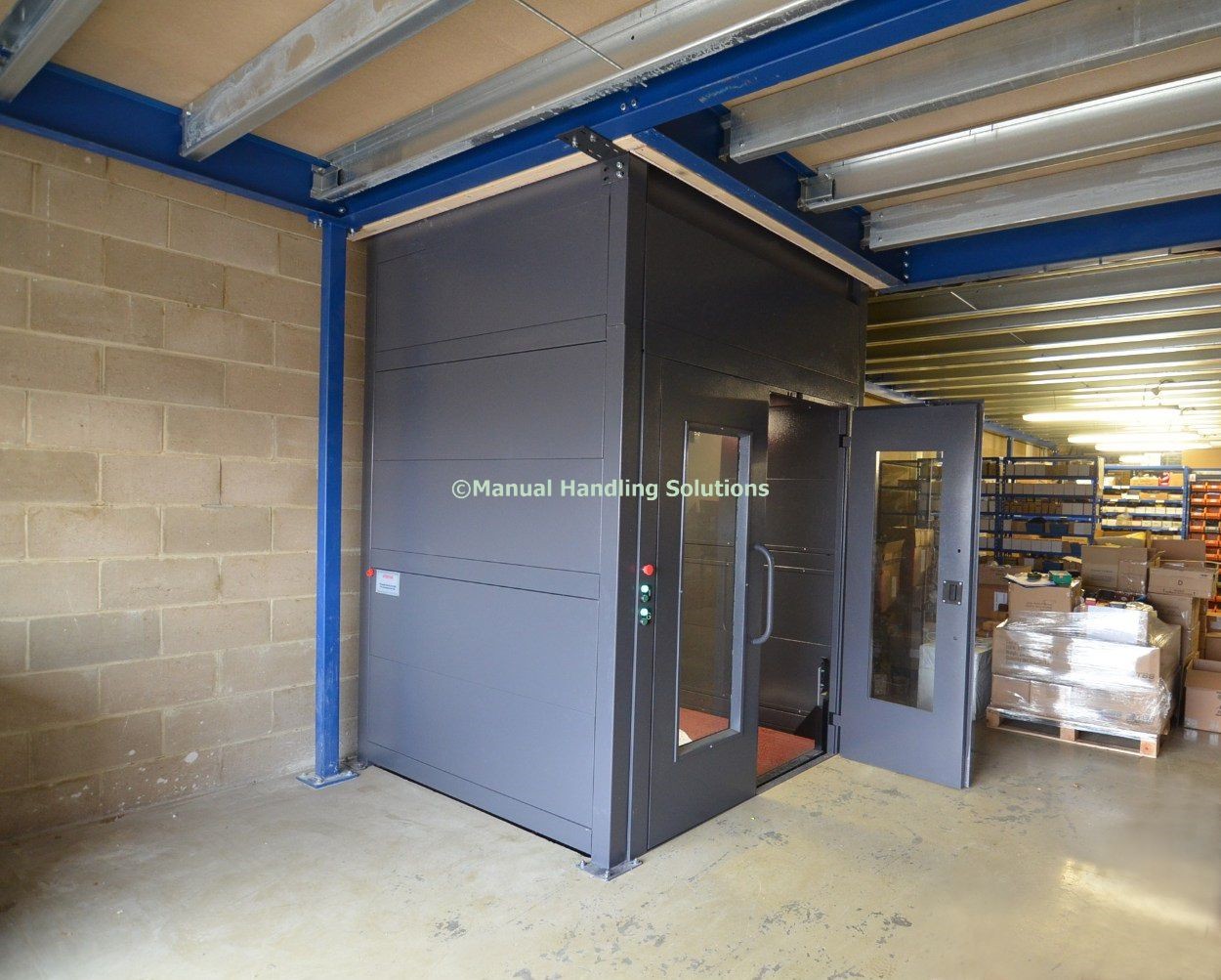

With a travel height 3050mm the self-supporting cladded structure passes through the mezzanine aperture to allow for same side loading and unloading. The self-supported structure comprised of infilled sheet steel clad panels painted Dark Grey RAL 7024.

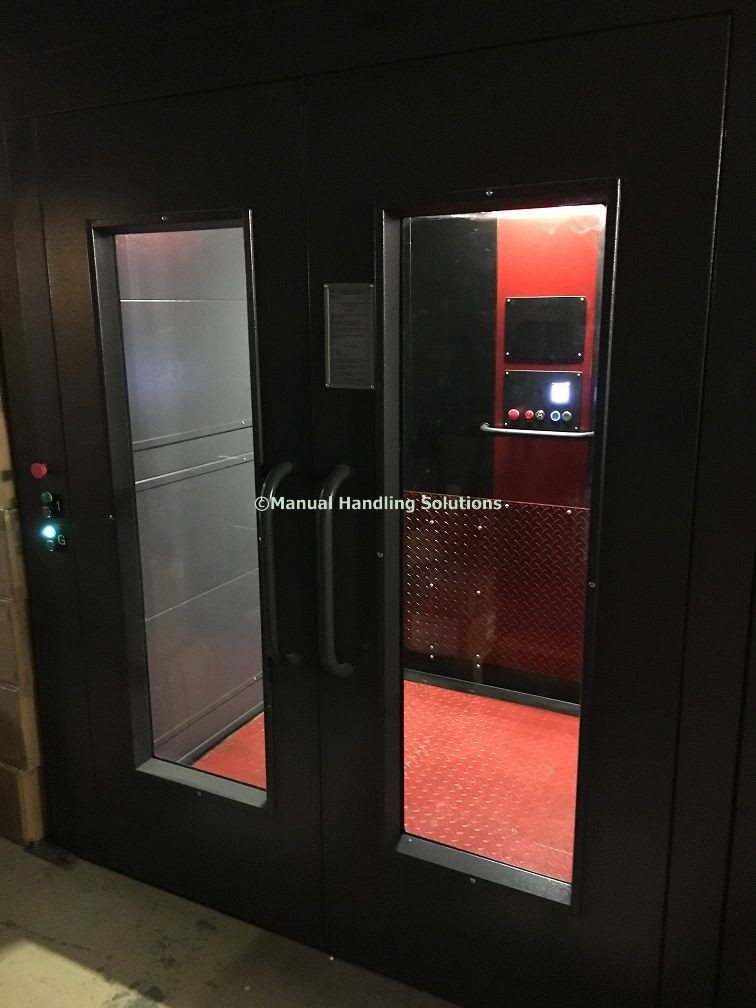

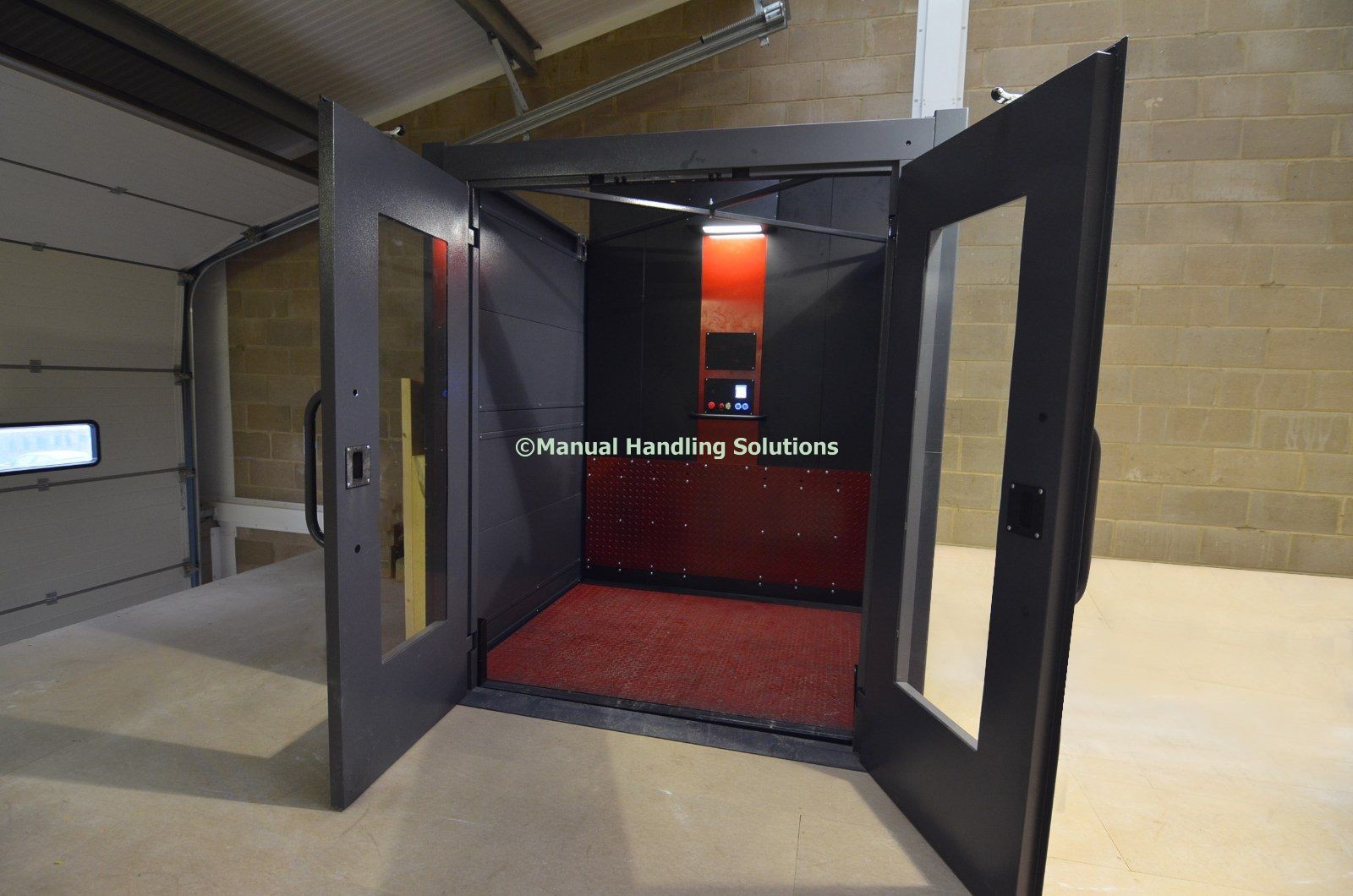

Platform size 1500mm x 1600mm in Cav Red RAL 3011 with the entrance to the lift at both levels having door clearance of 1350mm and twin opening doors each door fitted with viewing glass with push buttons integrated in the door frame.
Features of the lift include; Elevator Safety lock with CE mark according EN81-2, door closer, automatic mechanical lock and unlock from the platform in the door zone (100mm). Goods Lift is fitted with “Press to Go” one touch controls at both levels with a lift speed 0,13m/s. Safety chain 24 VDC, Rupture valve, CRS electronic safety unit according EN81-2 A3 to prevent unintended movement – allowing a person to enter on the platform during loading only.
Due to the Goods Lift carrying a trained person (Operator) the lift includes for; Safety Brakes with CE mark, Manometer Stop Valve, Hand Pump, SOS GSM Dialler, and Emergency Power Supply. LED light on the Platform, Emergency Light, and Protection on Guider Rails, Platform Operation Panel and Flat Traveling Cable.
Electrics and Hydraulic pump are housed within tamper proof lockable metal cabinet dimensions 600mm x 730mm x 570mm. Lift electrical requirements 3 phase, 400v, 50Hz, 1.5Kw. Isolator supplied by the client.
Installed; Chestnut Drive, Wymondham Business Park, Wymondham Norfolk East Anglia.
- Please note this is not a DDA (Disabled Lift)
We would like to thank and have no hesitation in recommending the following trades – services;
- Ian Rush Building Services for carrying out the newly formed pit
- Mezzanine design with lift aperture provided by Mezzanine Group International
- Nerys Botwright MCIAT, BA (Hons) Lucas Hickman Smith Ltd for drawings, client approval and regulative issues
Require a Goods Lift in Norwich, Norfolk, East Anglia, Suffolk, Cambridge, and surrounding areas please contact Manual Handling Solutions Tel 01553 811977
