Mezz Goods Lift for Greater Manchester
|Mezz Goods Lift for Greater Manchester
Mezz Goods Lift, with maximum working load 500kg, enclosed in a self-supporting mesh shaft. Platform will be 1500mm x 1400mm and guarded 900mm high on the non-loading edges. The platform side guarding is fitted with two loop chains to support roll cages in transit.
At the entrance to the lift at both levels there will be 2200mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed.
At the lower level a 500mm long fixed ramp will be provided to assist loading on to the 50mm deep platform. Power supply 2.2kw, 415 volt, three-phase and neutral supply is required terminated in an isolator at the lower level. Control is via a hold to run, push button control station adjacent to the gates at both levels.
Goods Lift supplied CE Marked with Declaration of Conformity. Operation and Maintenance Manual issue on completion. LOLER Report of Thorough Examination and Test issued on commission. Operator training carried out on completion. Project completed in four weeks.

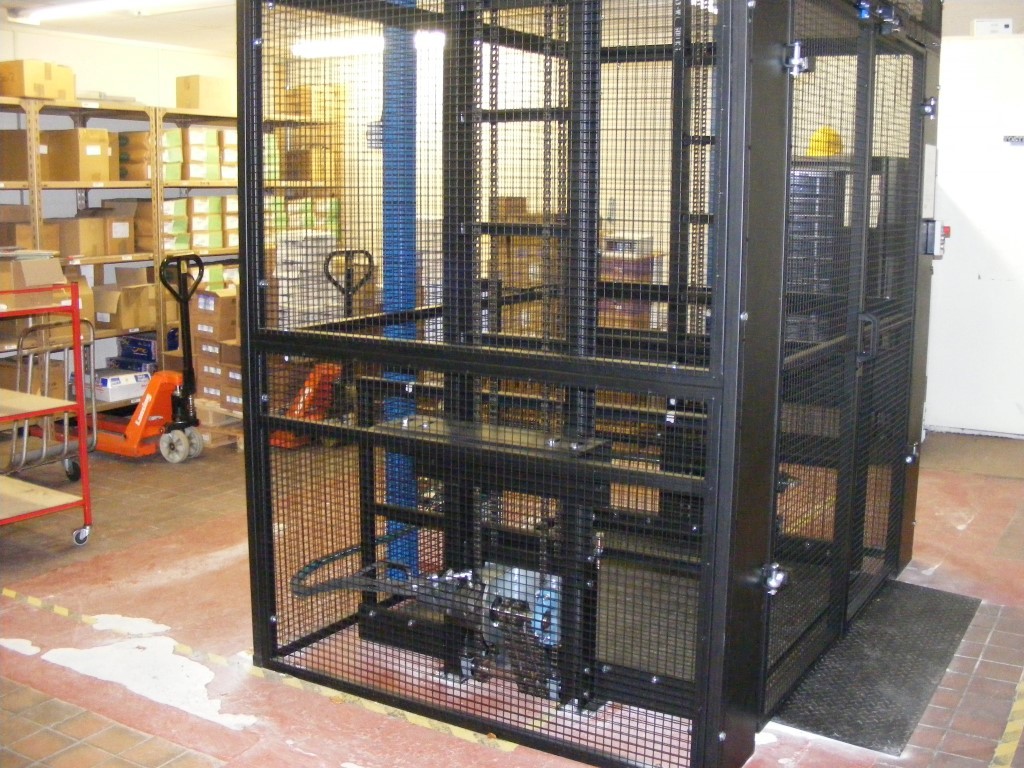

500kg Mezz Goods Lift for Greater Manchester West Mental Health – Prestwick Hospital
