Mezzanine Goods Lift Bedford

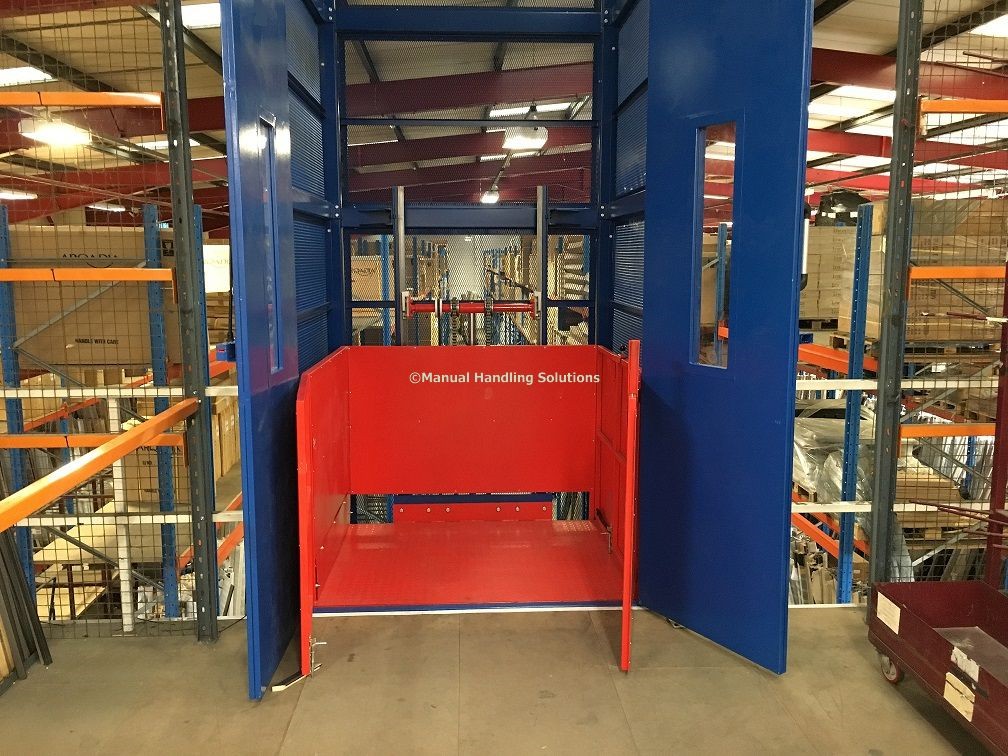

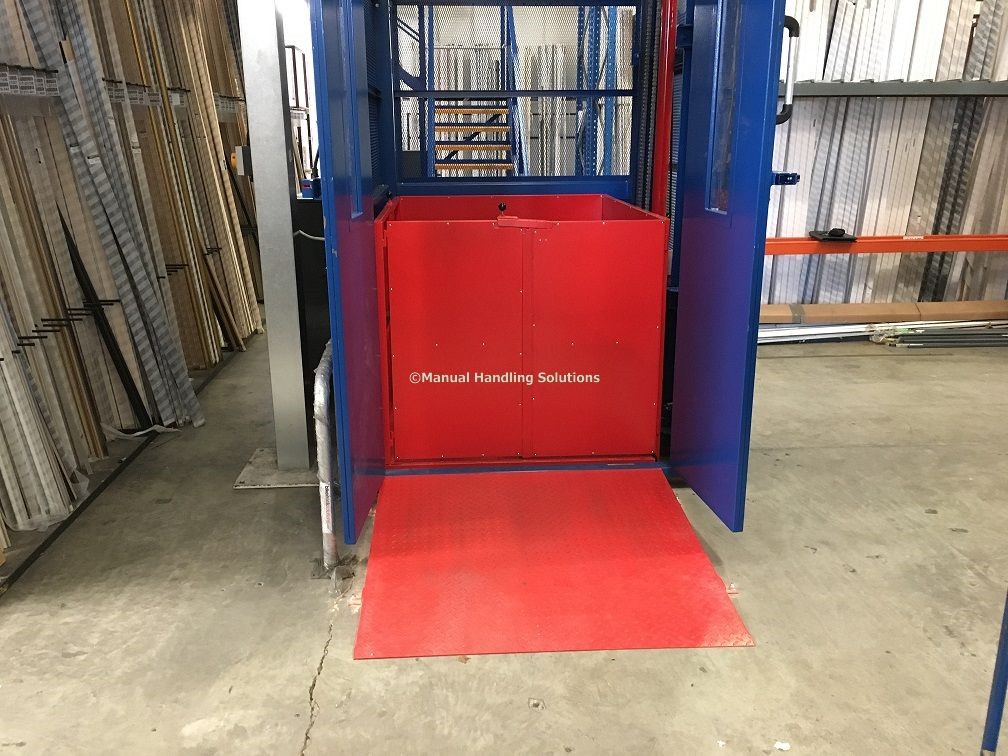

Mezzanine Goods Lift single mast installed Kempston Bedford with a lift capacity 350kg and a clear platform size 1200mm x 1500mm, finished floor level 4050mm. Goods Lift platform fitted with fully enclosed car 1100mm high with infilled panels on the non-loading sides and twin opening gates on the other two sides finished in Red RAL 3020. Goods lift supplied with loading ramp size H100mm x W1280mm x L1250mm at lower level and “Press to Go” one touch controls with emergency stop at both levels.

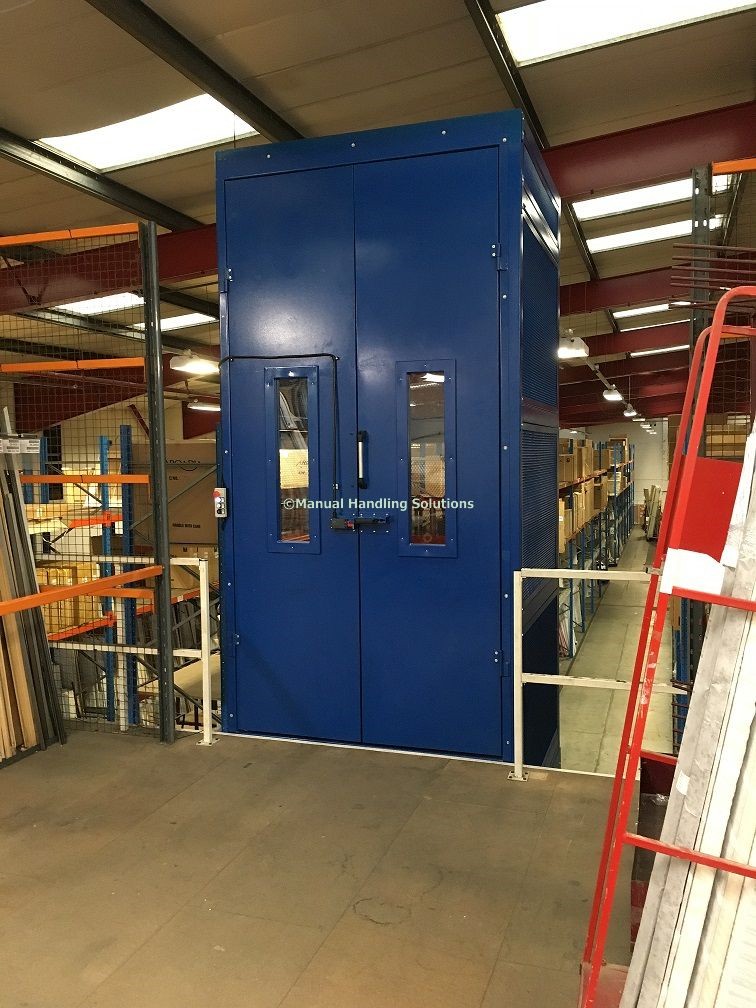

Mezzanine Goods Lift self-supporting lift structure manufactured from 100mm x 100mm box section steel with infilled mesh panels Blue RAL 5010 the 3300mm high double loading doors are cladded with viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper level guarding is 3500mm

To prevent damage from pallet trucks and fork lift trucks the power pack / hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 1.5Kw control voltage 24 volt IP55.

General Specification

  • Emergency lowering system when power is cut off
  • Pre wired control box included magnetic starter and overload fuse
  • Upper level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks
  • Control points are fitted to both ground and upper floor levels
  • The hydraulic power pack and electrical system housed separately at ground level
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
  • Installed; Wolseley Rd, Kempston, Bedford MK42 7AD

Manual Handling Solutions – Mezzanine Goods Lifts have a wealth of experience in the design, manufacturing process and installing cost effective mezzanine goods lifts in commercial, residential and industrial properties throughout the UK. We can design, manufacture and install a bespoke goods lift system that accommodates almost any space and any specification. Our range of mezzanine goods lifts – hydraulic goods lifts are ideal for restaurants, hotels, museums, supermarkets, warehouses, theatres, retail and distribution centres including basement locations.
