Mezzanine Goods Lift Fareham Hampshire

Mezzanine Goods Lift Fareham Hampshire Mezzanine Goods Lift Fareham Hampshire

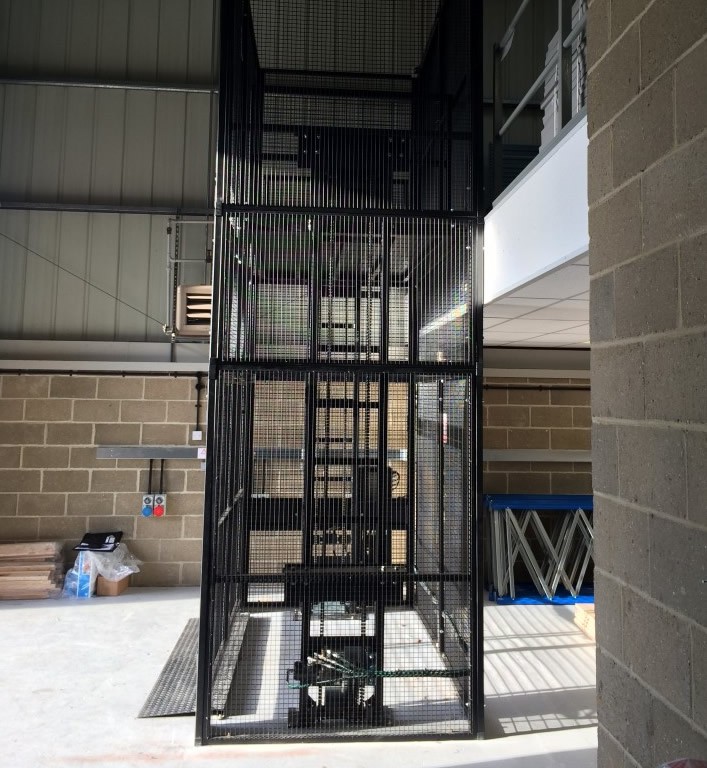

Goods Lift for Linet UK, based at new location in Fareham Hampshire. Goods Lift with maximum working load 350kg, Lift Height 2940mm enclosed in a self-supporting 1” x 1” mesh shaft. The platform will be 2300mm x 1300mm and guarded 900mm high on the non-loading edges.

At the entrance to the lift at both levels there will be 2000mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level and prevent the lift being operated unless all gates are closed.

At the lower level a 500mm long fixed ramp will be provided to assist loading on to the 50mm deep platform. Upper level supplied with bridging plate to bridge the gap between the lift and the upper level.

Chain drive, hydraulic motor, power supply 2.2kw, 415 volt, three-phase and neutral supply is required terminated in an isolator at the lower level.

Control is via a hold to run, push button control station adjacent to the gates at both levels. Goods Lift supplied CE Marked with Declaration of Conformity, Operation and Maintenance Manual issue on completion, LOLER Report of Thorough Examination and Test issued on commission and Operator training carried out on completion.

A 12 months Statutory Inspections and maintenance ensures continued safe and reliable use of the equipment and full compliance with current legislation.

In brief it comprises an annual service with thorough examination and test, a six-month inspection and test and all labour or callout charges.
