MezzLift Specification for GCI SmartBunker 500kg

MezzLift Specification for GCI SmartBunker 500kg

MezzLift Specification for GCI SmartBunker 500kg

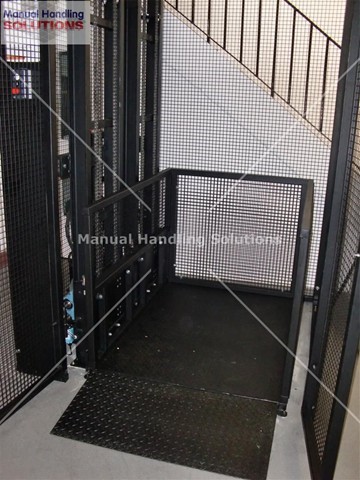

MezzLift, with maximum working load 500kg, fully enclosed in a self supporting mesh shaft. Lift Height Floor to Floor 3100mm, the platform will be 1000mm by 1350mm to suit the size of Server Racks being transported and will be guarded three sides to suit the loading direction.

MezzLift Specification for GCI SmartBunker 500kg MezzLift for GCI SmartBunker 500kg MezzLift installed at GCI SmartBunker 500kg MHS MezzLift installed at GCI SmartBunker 500kg Manaul Handling Solutions MezzLift installed at GCI SmartBunker 500kg MezzLift installed at GCI SmartBunker 500kg by MHS MezzLift installed at GCI SmartBunker 500kg by Manual Handling Soluions MezzLift 500kg From MHS MezzLift 500kg From Manual Handling Soluions Goods Lift 500kg Manual Handling Solutions Mezz Lift lightbox MACby VisualLightBox.com v6.1

At the entrance to the Mezz Lift at both levels there will be 2500mm high gates, which will be fitted with electrical interlocks to prevent the gates being opened unless the platform is docked at the appropriate level. The lift doors open up inside the existing gates at the lower level.

A 415 volt, three-phase and neutral supply is required terminated in an isolator at the lower level. Control is via a hold to run, push button station adjacent to the gates at both levels. Due to the platform size and having the 500kg mechanism it is not possible to fit power pack inside the lift shaft on this lift, we will have to locate this on a power pack stand externally to the lift.
