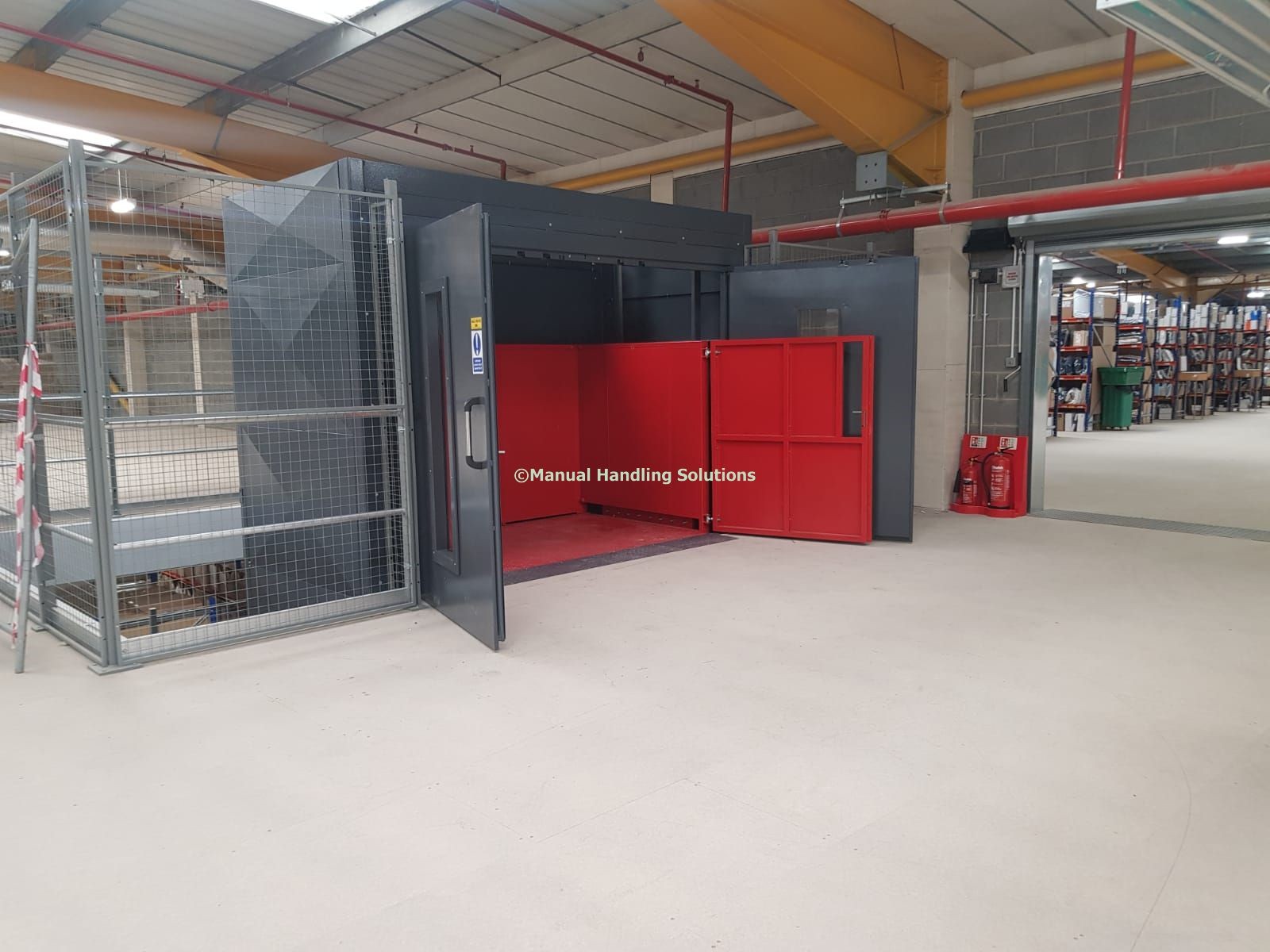

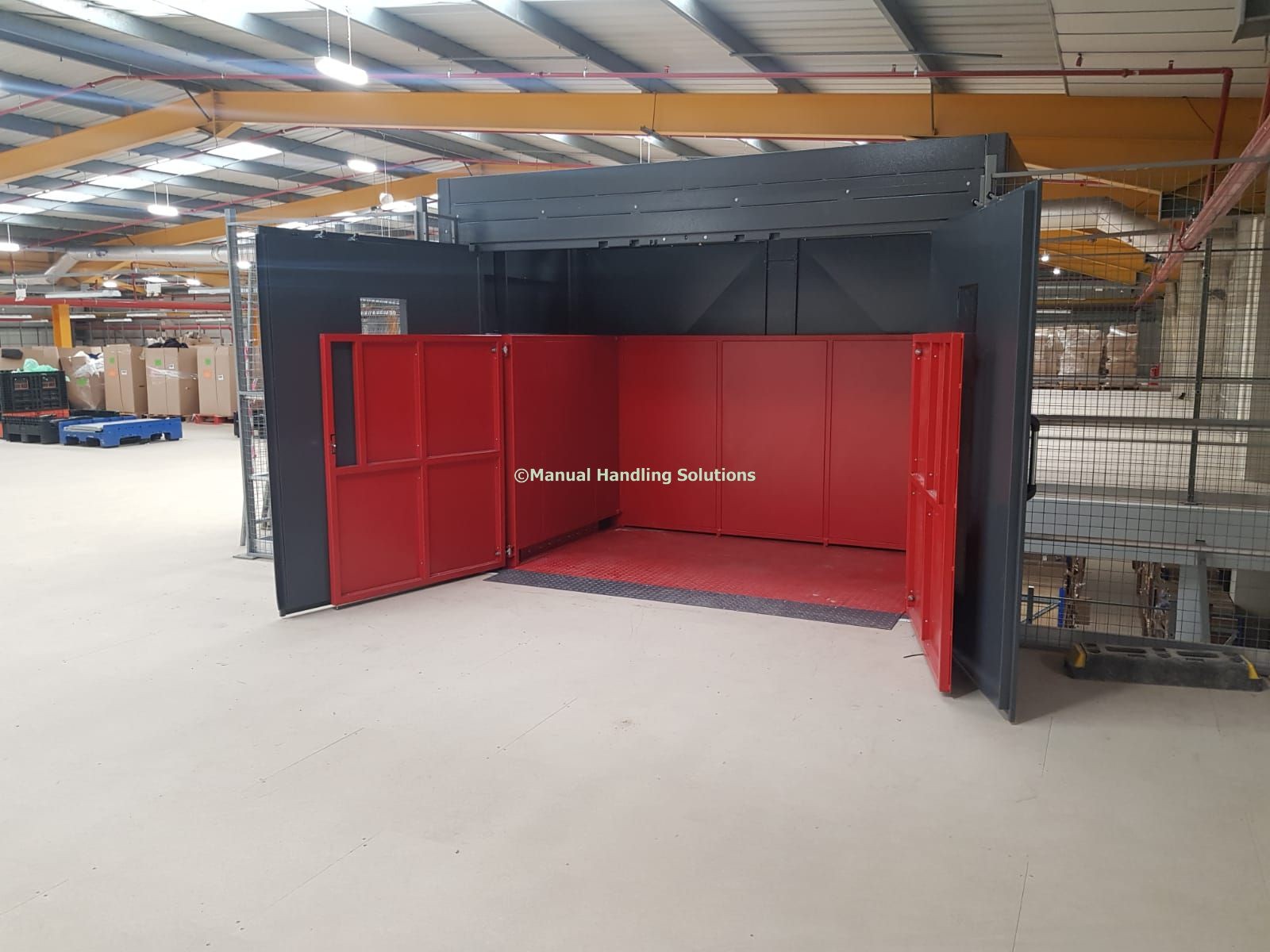

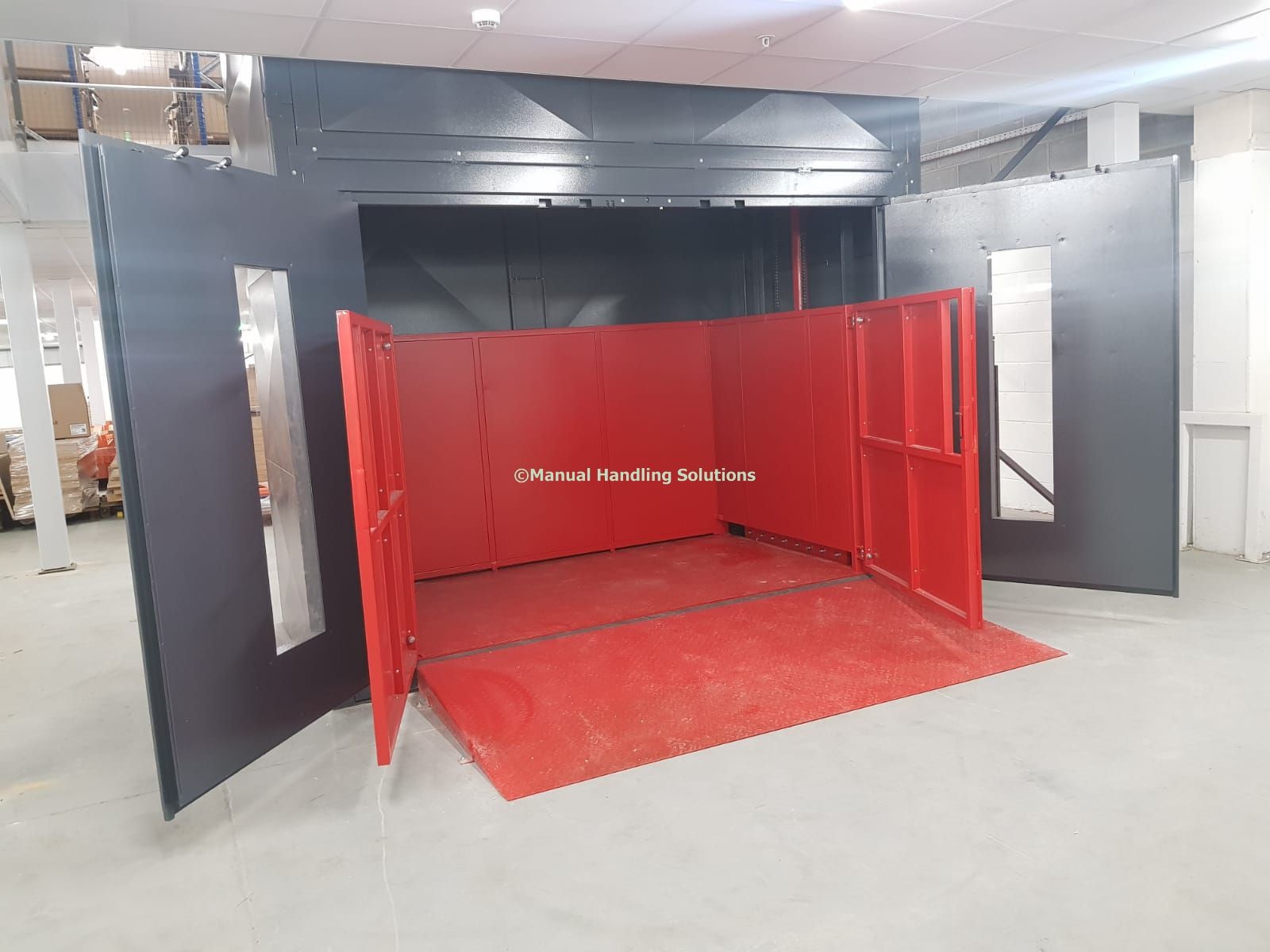

1000kg 4 stop twin column hydraulic Goods only Lift installed California Drive, Castleford West Yorkshire WF10 5QH with a finished floor level 9555mm and platform size 2500mm x 1500mm. Platform fitted 3 sides with 1500mm high infilled panels on the non-loading sides and 1500mm high twin opening interlocked gates on loading side finished in Red RAL 3020.

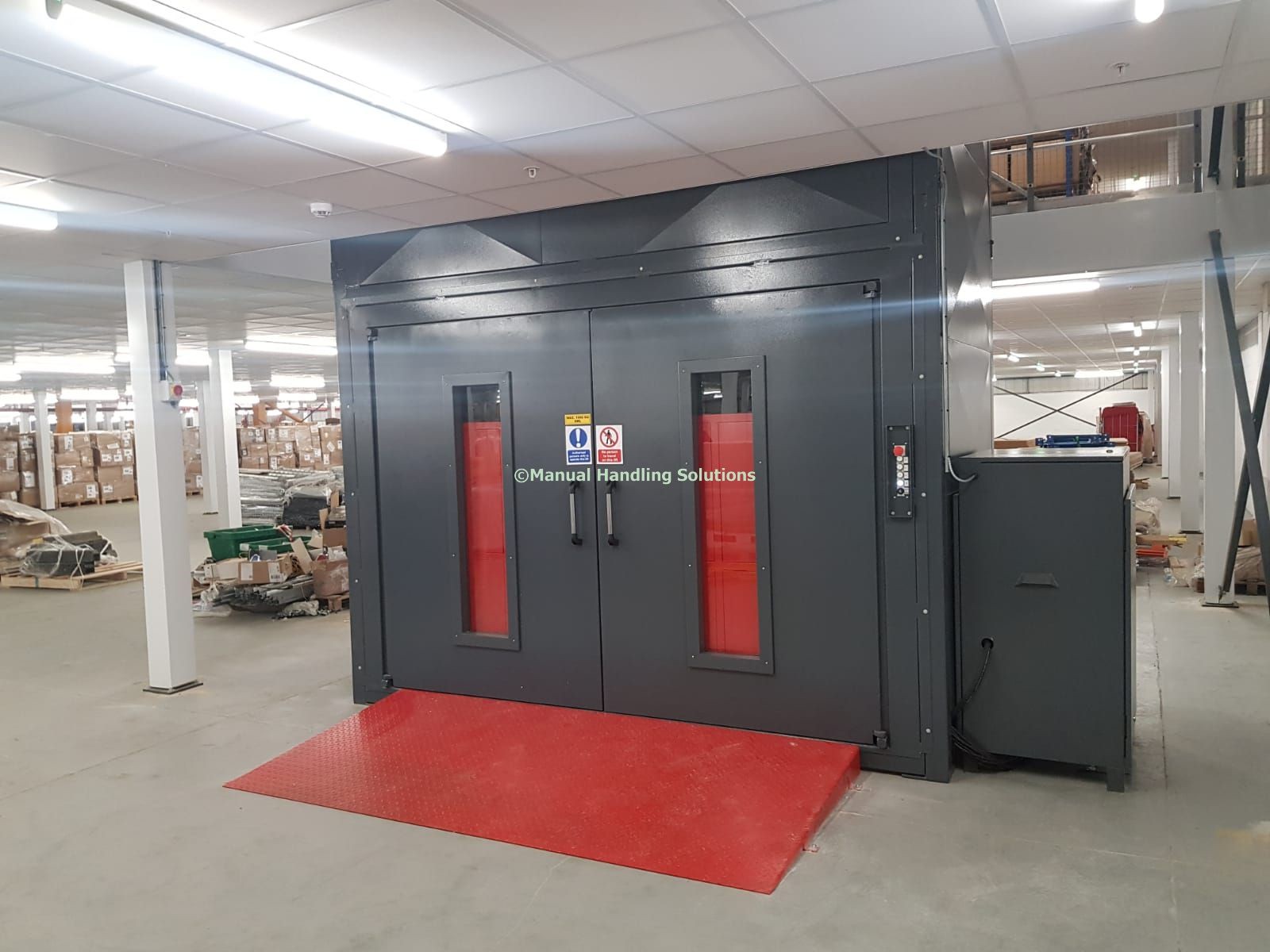

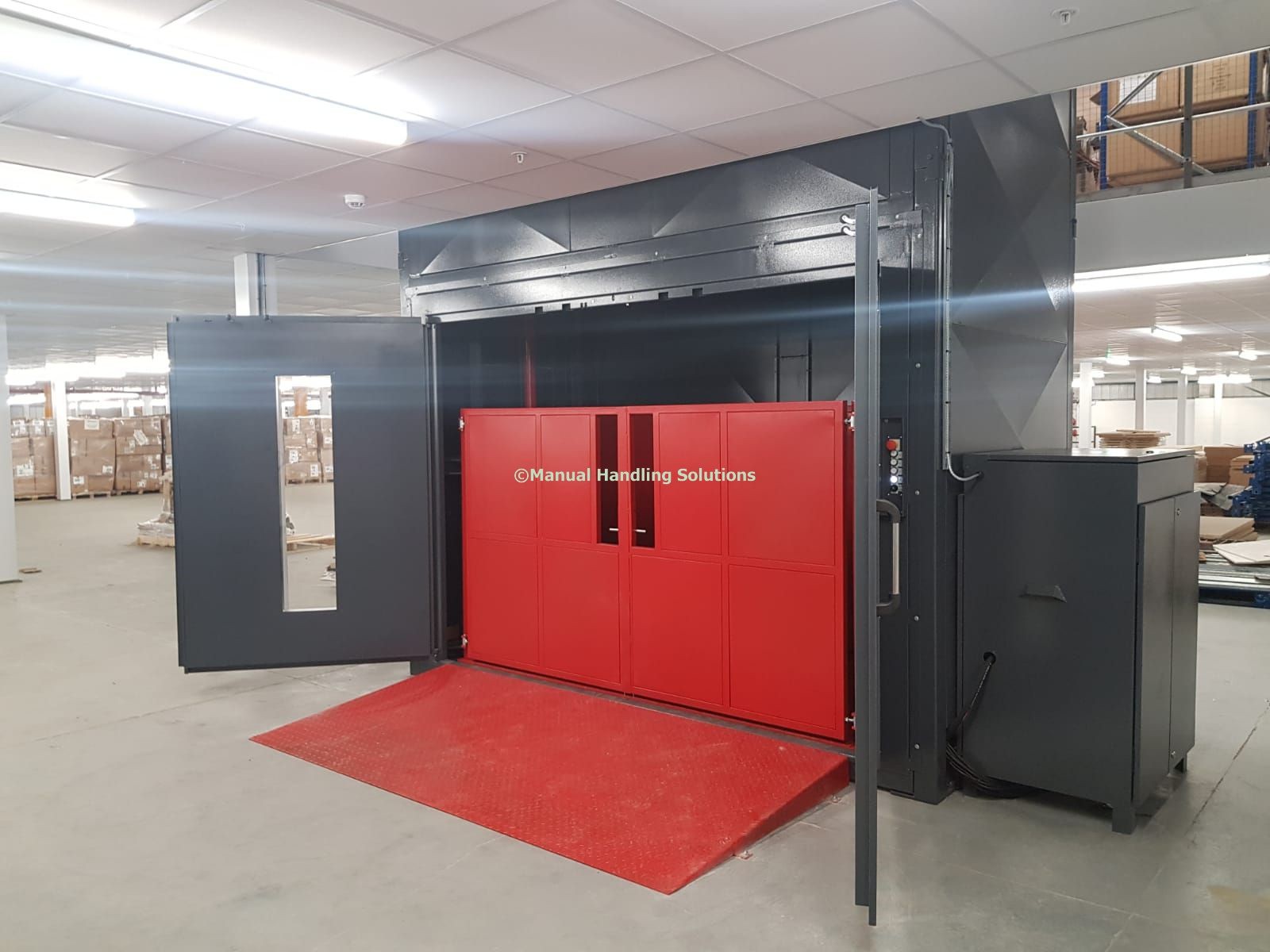

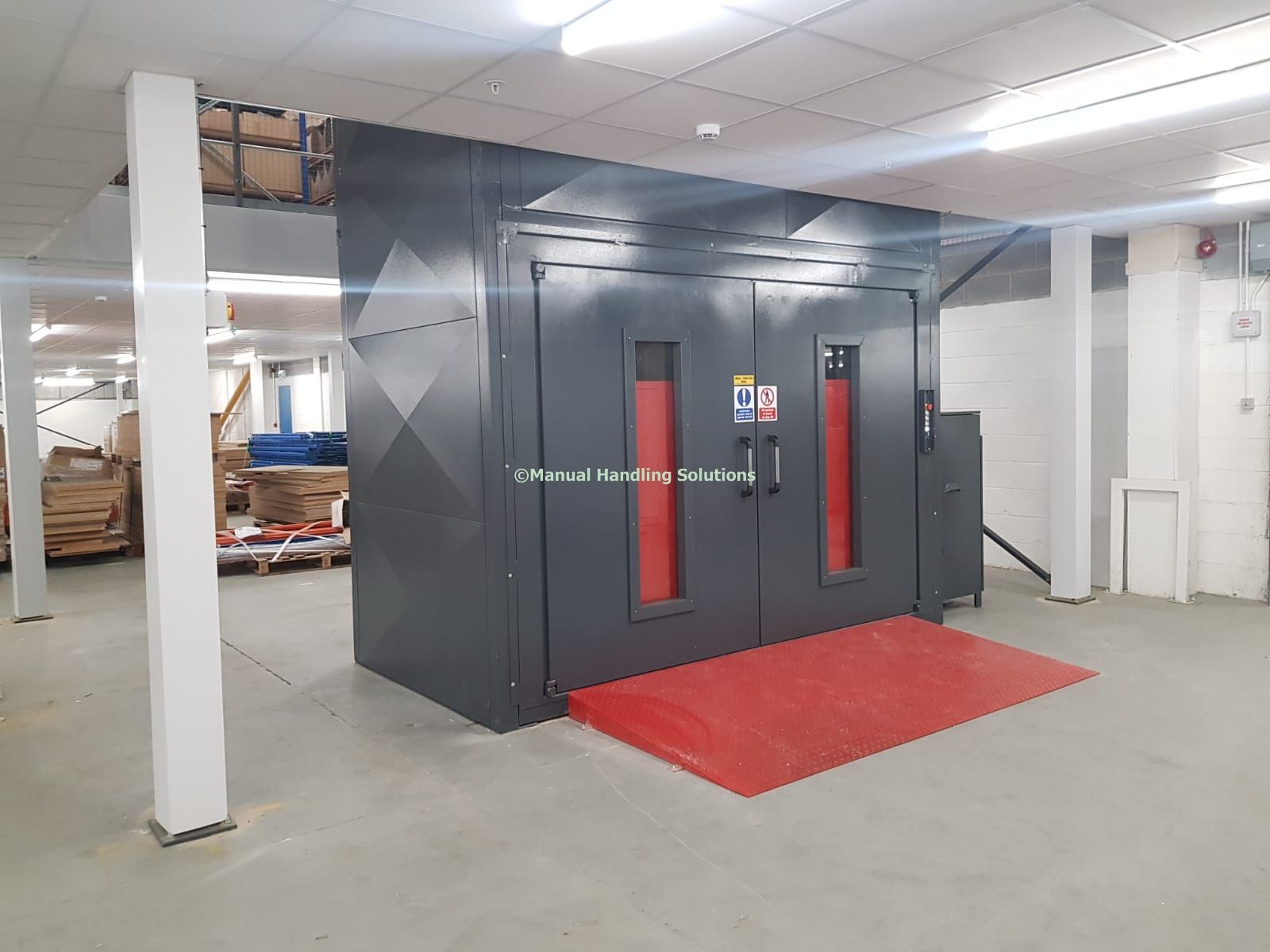

Goods lift supplied with loading ramp H120mm x W2680mm x L1250mm.

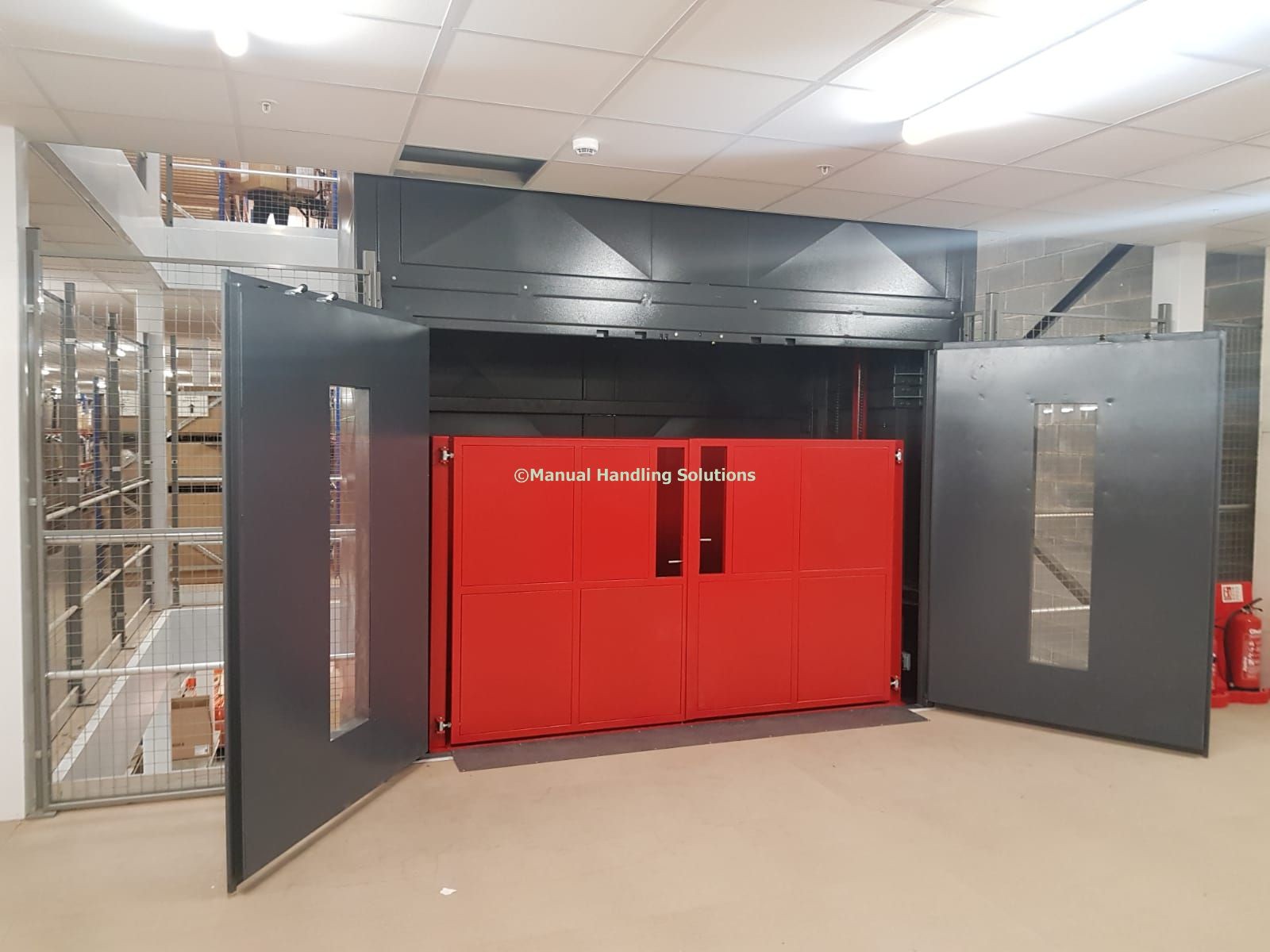

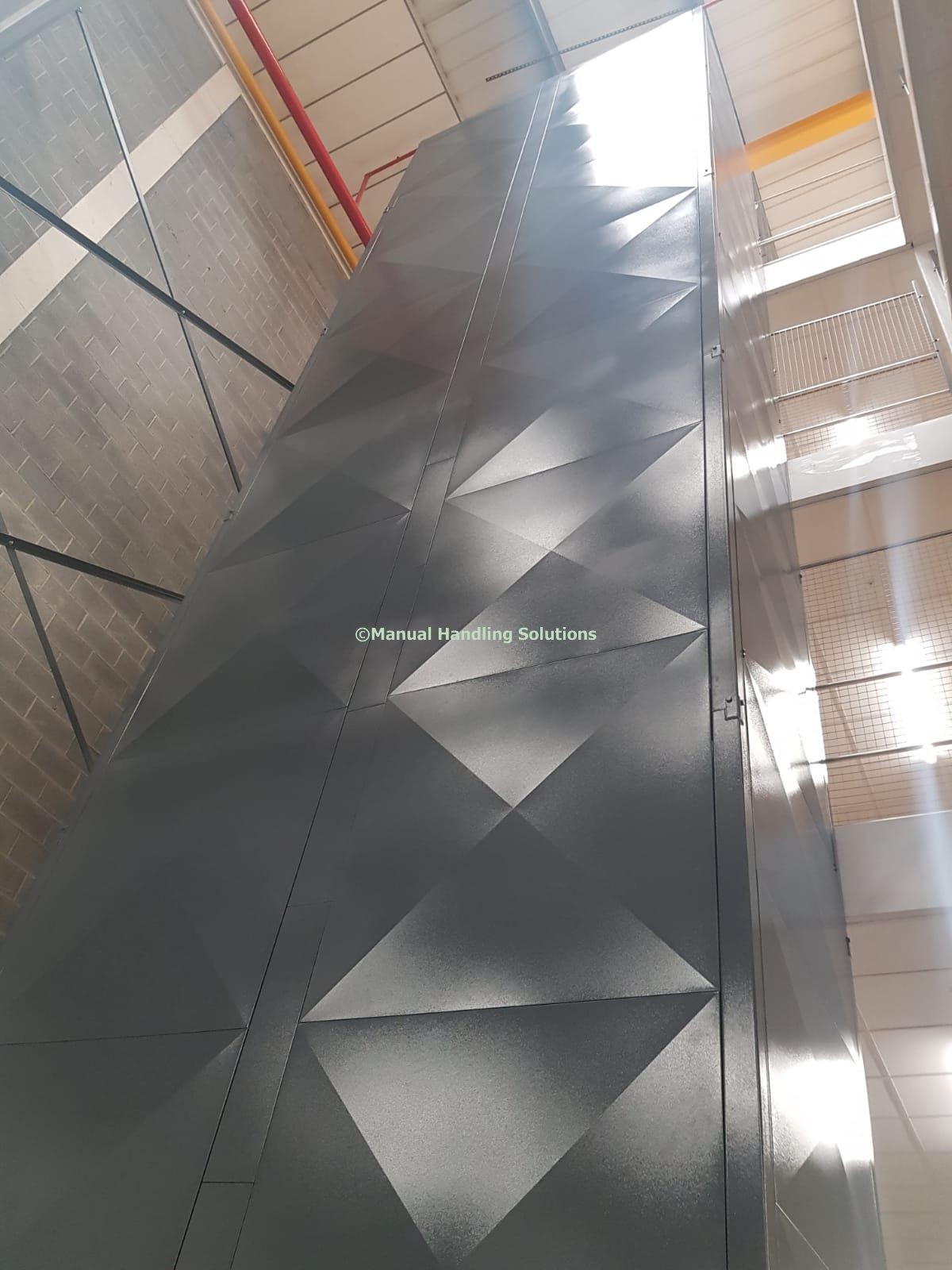

Goods Lift is a self-supporting lift structure manufactured from 150mm x 150mm box section steel with clad infilled panels Grey RAL 7024. Mezzanine Goods fitted with 2000mm high twin loading doors cladded with Perspex viewing panel at all entrances and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed.

The overall height of the upper-level structure is 2290mm.

Goods Lift fitted with safety shoot bolts which allow for the operator to enter onto the lift platform safely while the lift is docked at the upper levels, the shoot bolts also eliminate any deflection in the platform during loading and unloading. “Press to Go” one touch controls with emergency stop at all entrances and levels fitted as standard.

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 5.5Kw control voltage 24-volt IP55.

General Specification

Emergency lowering system when power is cut off.
Prewired control box included magnetic starter and overload fuse.
Upper-level travel limit switch and overload relief valve
Hydraulic cylinders feature emergency velocity fuse if line breaks.
Control points are fitted to both ground and upper floor levels.
The hydraulic power pack and electrical system housed separately at ground level.
The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
Hydraulic cooling system fitted due to high usage
All of our mezzanine liftsare CE plated and built in compliance with the Machinery Directive 2006/42/EC
Installation; California Drive, Castleford West Yorkshire WF10 5QH
