Goods Lift Ely

Goods Lift Ely

Goods Lift Ely

500kg hydraulic Goods Lift through car with a single mast installed Ely, Cambridgeshire, with a finished floor level 3650mm and a platform size 1500mm x 1300mm fitted with 1100mm high infilled panels on the non-loading sides and twin opening interlocked gates finished in Traffic Red RAL 3020

A self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Grey RAL 7024.

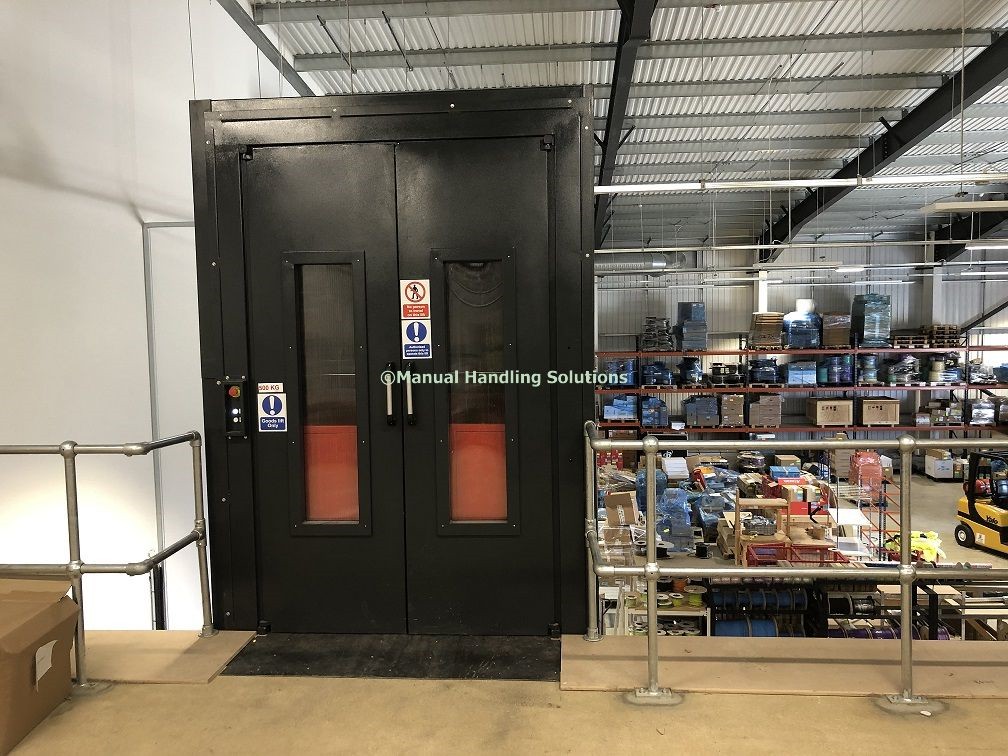

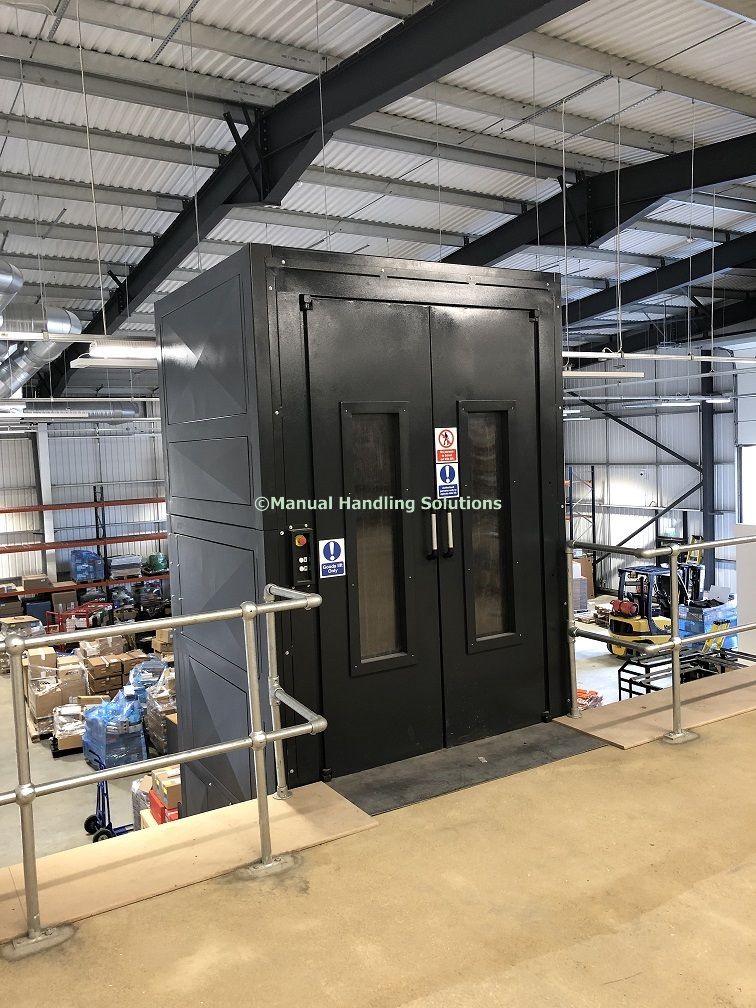

Goods lift fitted with 2500mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed.

The overall height of the upper level structure is 2650mm.

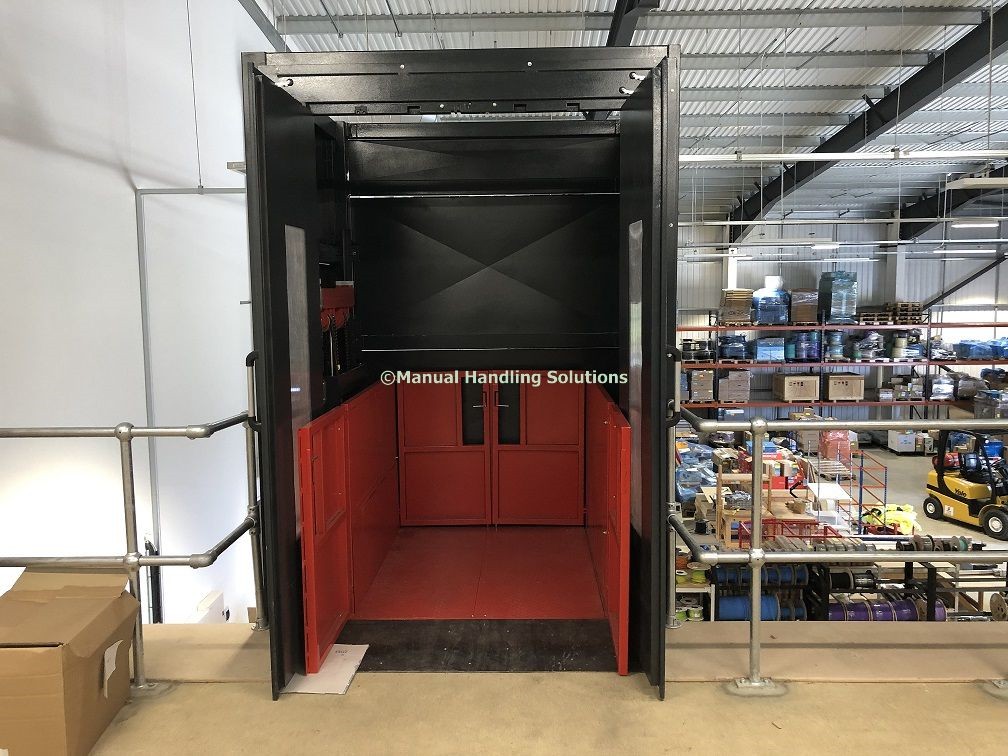

Goods lift fitted with safety shoot bolts which allows for the operator to enter the lift platform safely while the lift is docked at the upper level, the shoot bolts also eliminates any flex in the platform during loading and unloading.

“Press to Go” one touch controls with emergency stop at both levels fitted as standard.

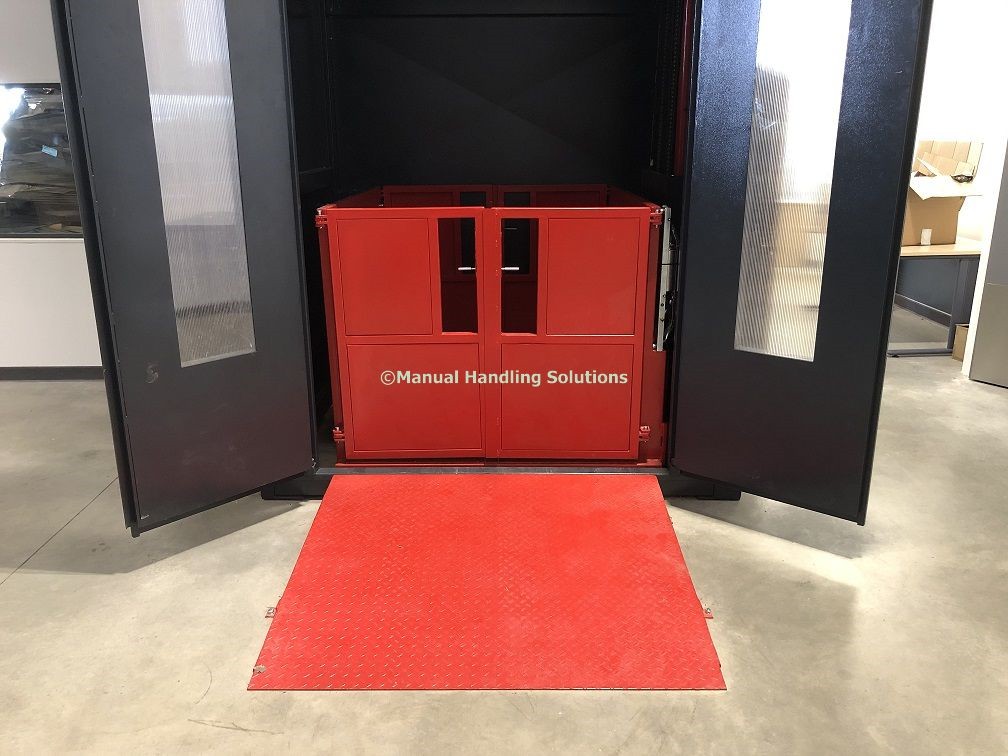

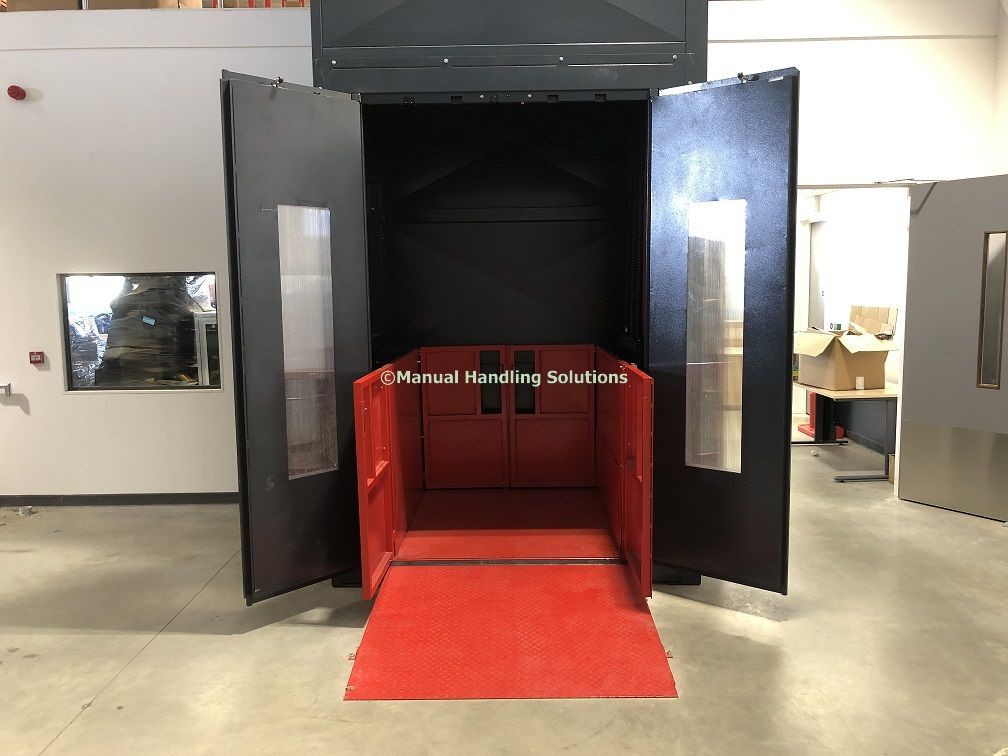

At the lower level a fixed ramp 1250mm long x 1580mm wide will be provided to assist loading on to the 120mm deep platform finished Red RAL 3020

To prevent damage from pallet trucks and fork lift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 1.5Kw control voltage 24 volt IP55.

General Specification

  • Emergency lowering system when power is cut off
  • Pre wired control box included magnetic starter and overload fuse
  • Upper level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks
  • Control points are fitted to both ground and upper floor levels
  • The hydraulic power pack and electrical system housed separately at ground level
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor
  • Installation; Lancaster Way Business Park, Ely, Cambridgeshire
Goods Lift Chatteris Goods Lift Duxford Goods Lift Newmarket Mezzanine Floor Goods lift Cambridge Mezzanine Goods Lift Cambridge Mezz Pallet Lift Cambridge Vertical Platform Lifts Ely Warehouse Goods Lift Cambridge Cambridge Goods Lifts Goods Hoist Ely lightbox MACby VisualLightBox.com v6.1

Manual Handling Solutions offer a versatile range of hydraulic goods lifts, they have been designed and manufactured to offer simple, economical and reliable solution to heavy lifting problems for a variety of applications, including warehouses, industries, supermarkets, restaurants, hotels, hospitals, private residences and office buildings. A goods lift from Manual Handling Solutions is a cost effective solution to transport bulky or heavy items in your commercial application. Health and Safety obligations dictate that you must provide a safe and injury free work place – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. We can custom design a goods lift system to specifically meet your needs.

If you have any questions about our goods lifts, or would like assistance with finalising your goods lift design, Manual Handling Solutions are available to answer any queries you may have. We’re happy to talk you through our diverse range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.

Goods Lift covering, Ely, Cambridge, Thetford, Newmarket, Lakenheath, Bury St Edmunds, Huntingdon

Contact us on Tel 01553 811977 or email us at sales@manualhandlingsolutions.co.uk
