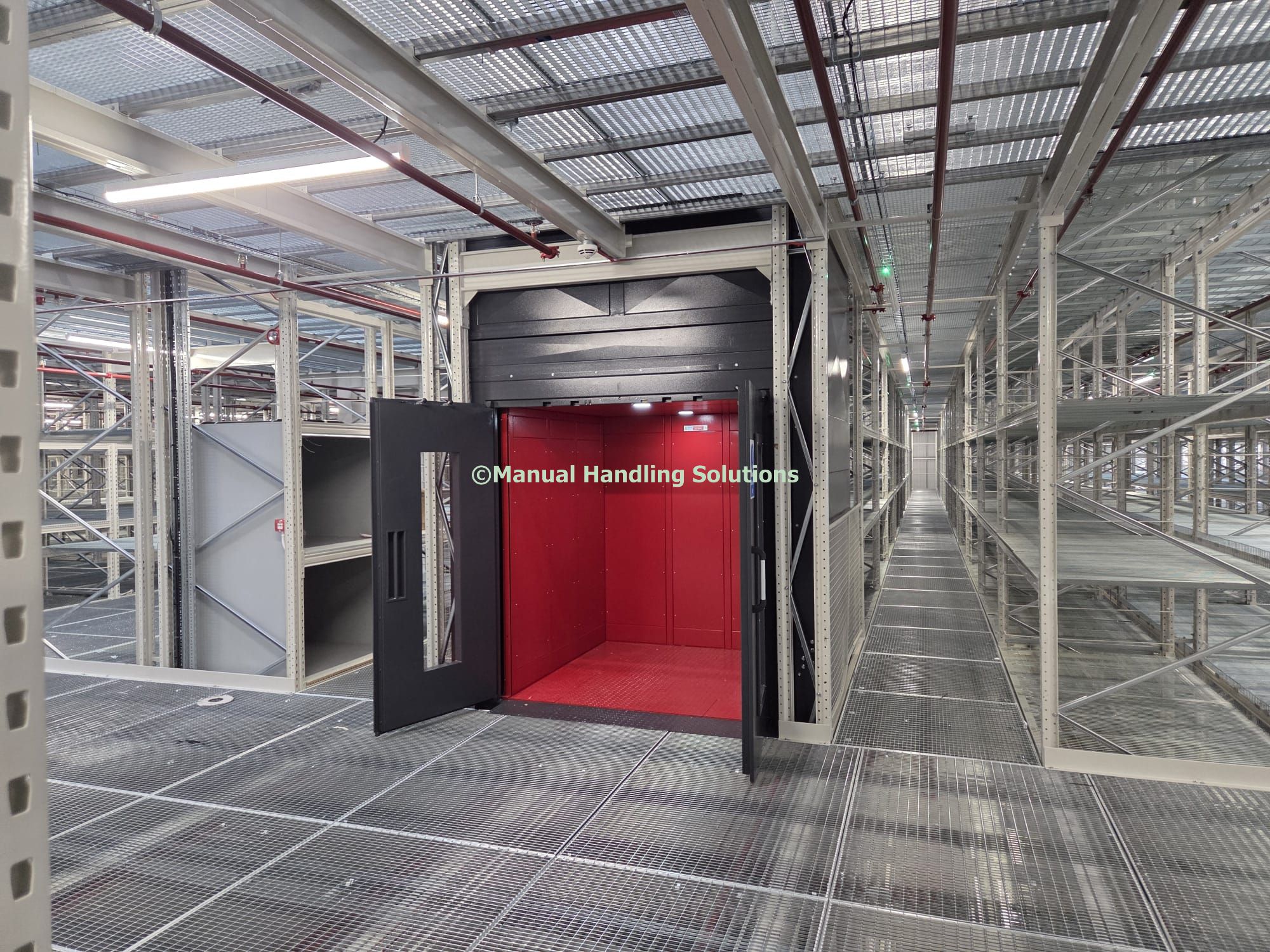

Bespoke 1000kg same side loading 4 stop double column Goods Lift with 1 Trained Attendant installed Unit 2, Symmetry Park Coventry Road, Rugby, Coventry, CV23 9LE with a finished floor level 13050mm and platform size W1710mm x D1750mm.

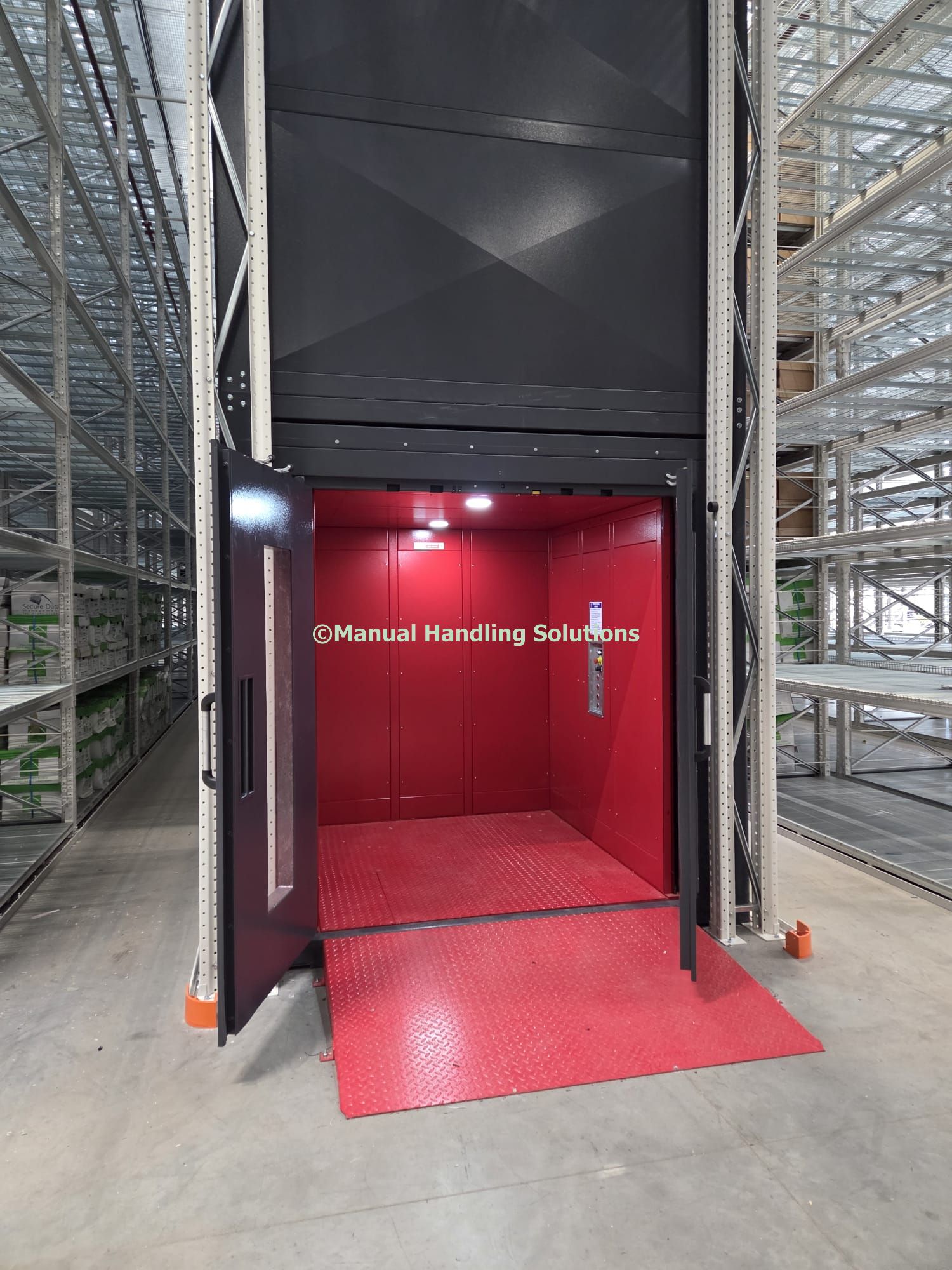

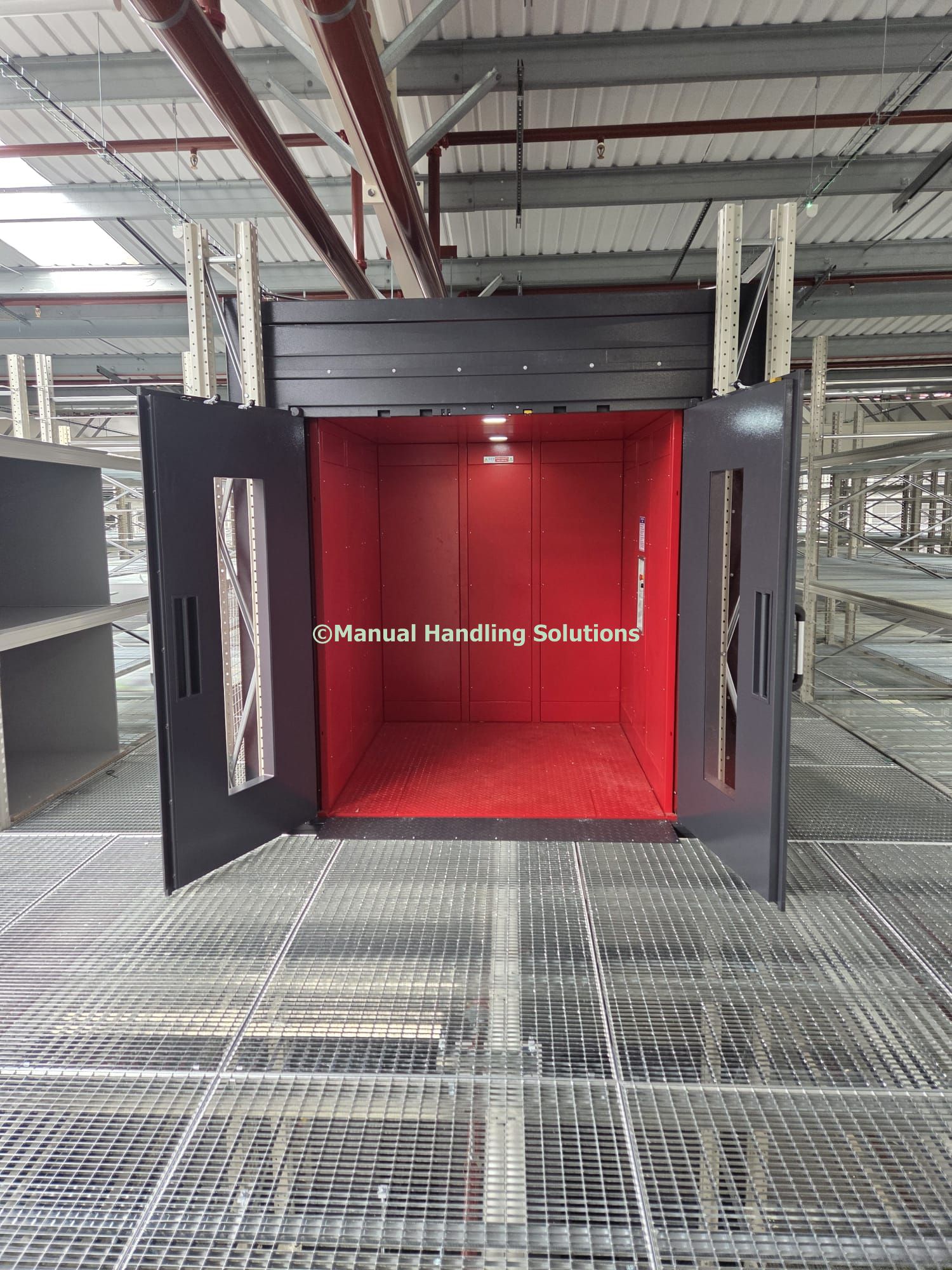

Platform fitted with a 3-sided 2000mm high enclosed cabin, LED lights and internal controls for the attendant.

On the loading entrance the lift is fitted with full height light beam curtain, should the light curtain be breached then the lift will automatically stop.

Platform and cabin finished Red RAL 3001. The attendant has direct access to operating controls, allowing them to select floors, manage the lift, and respond to situations within the car.

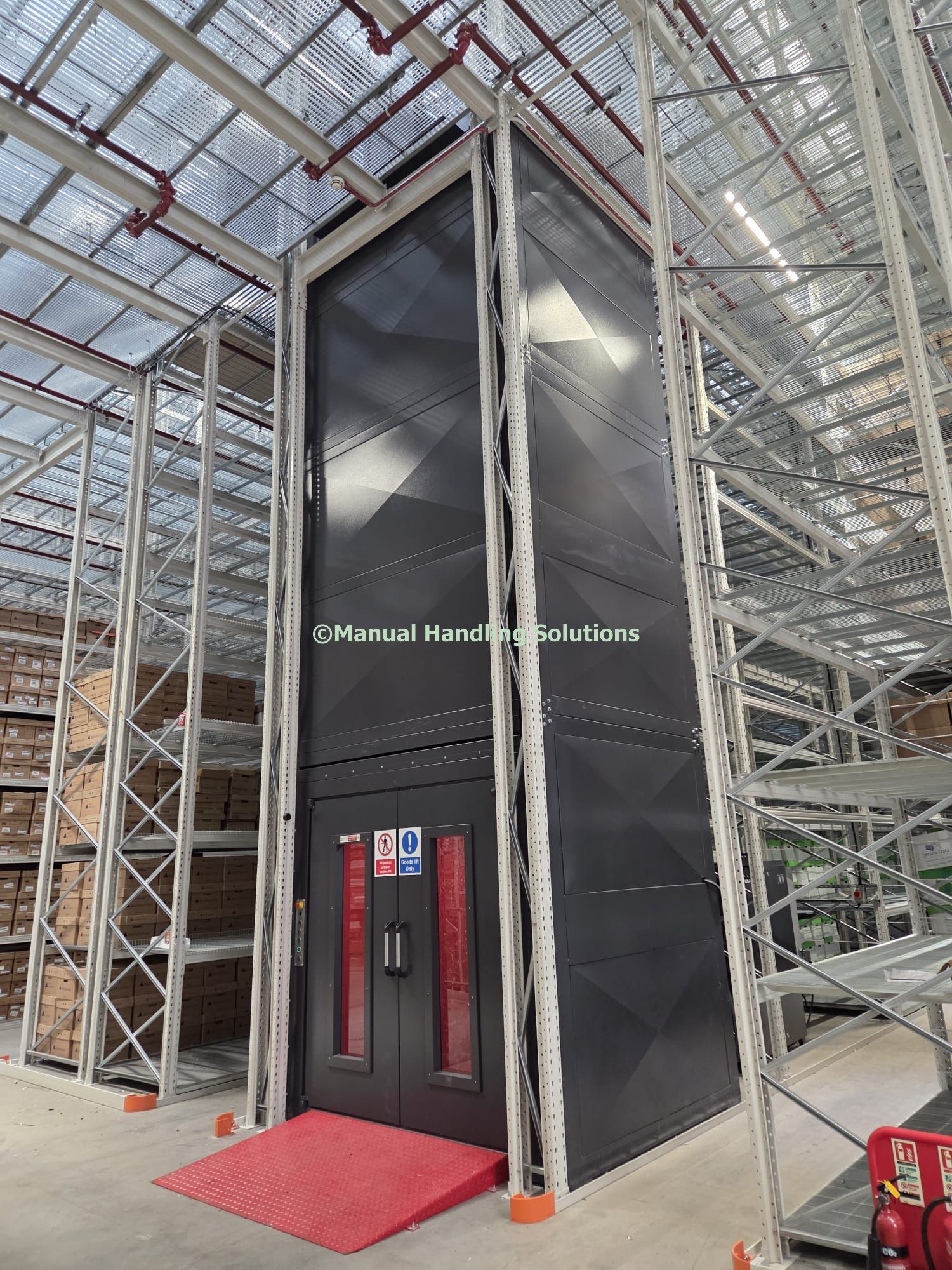

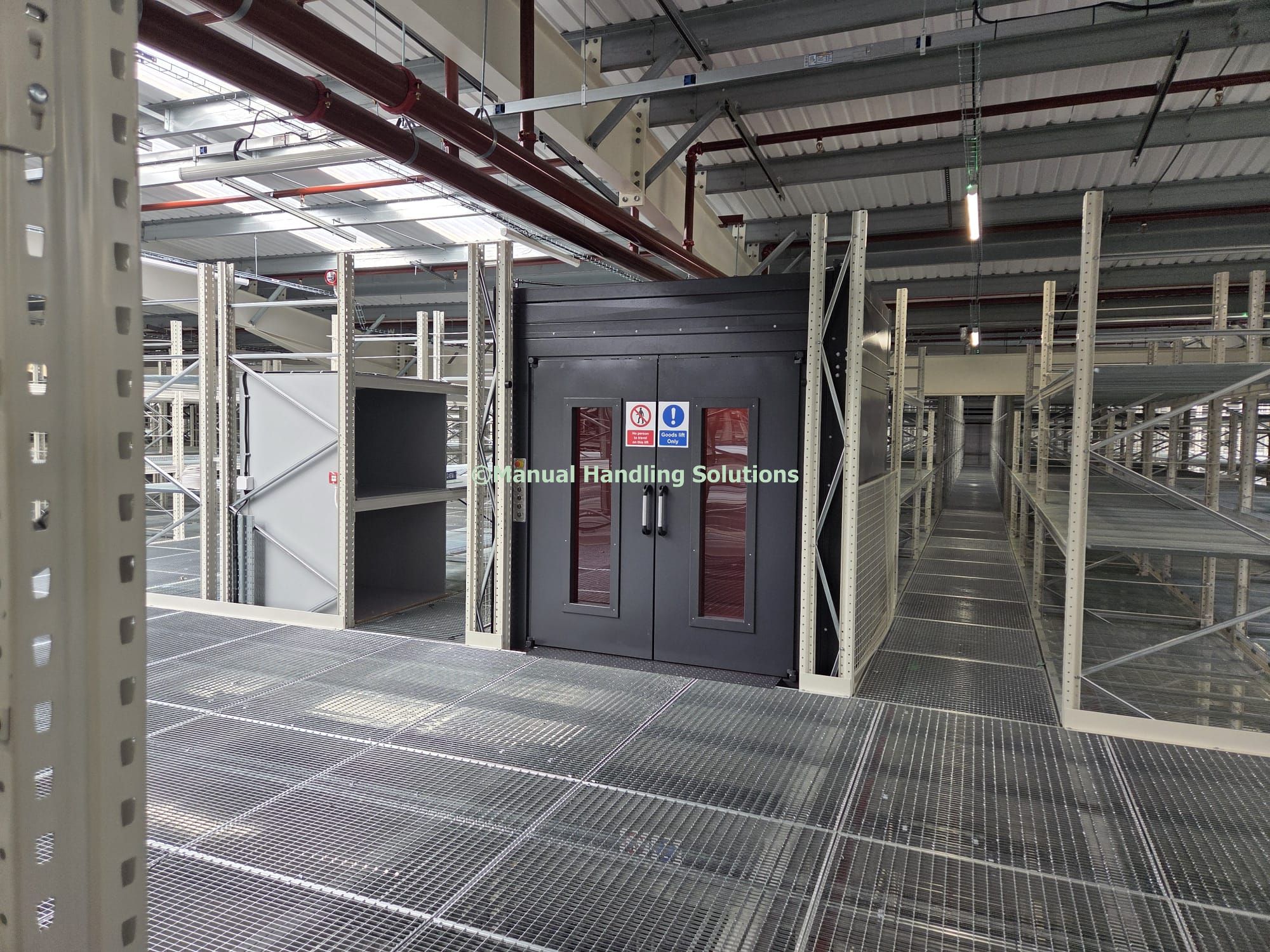

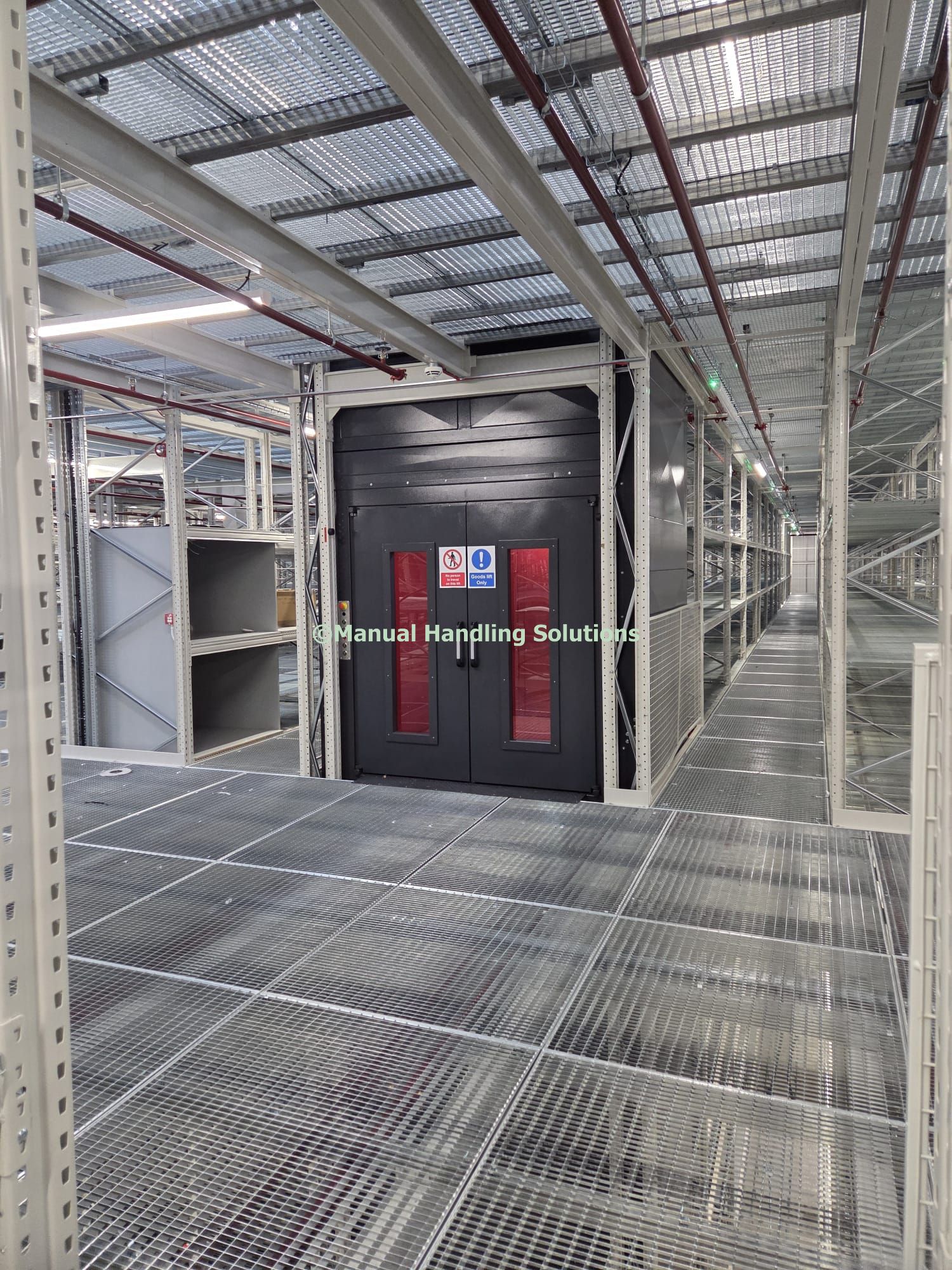

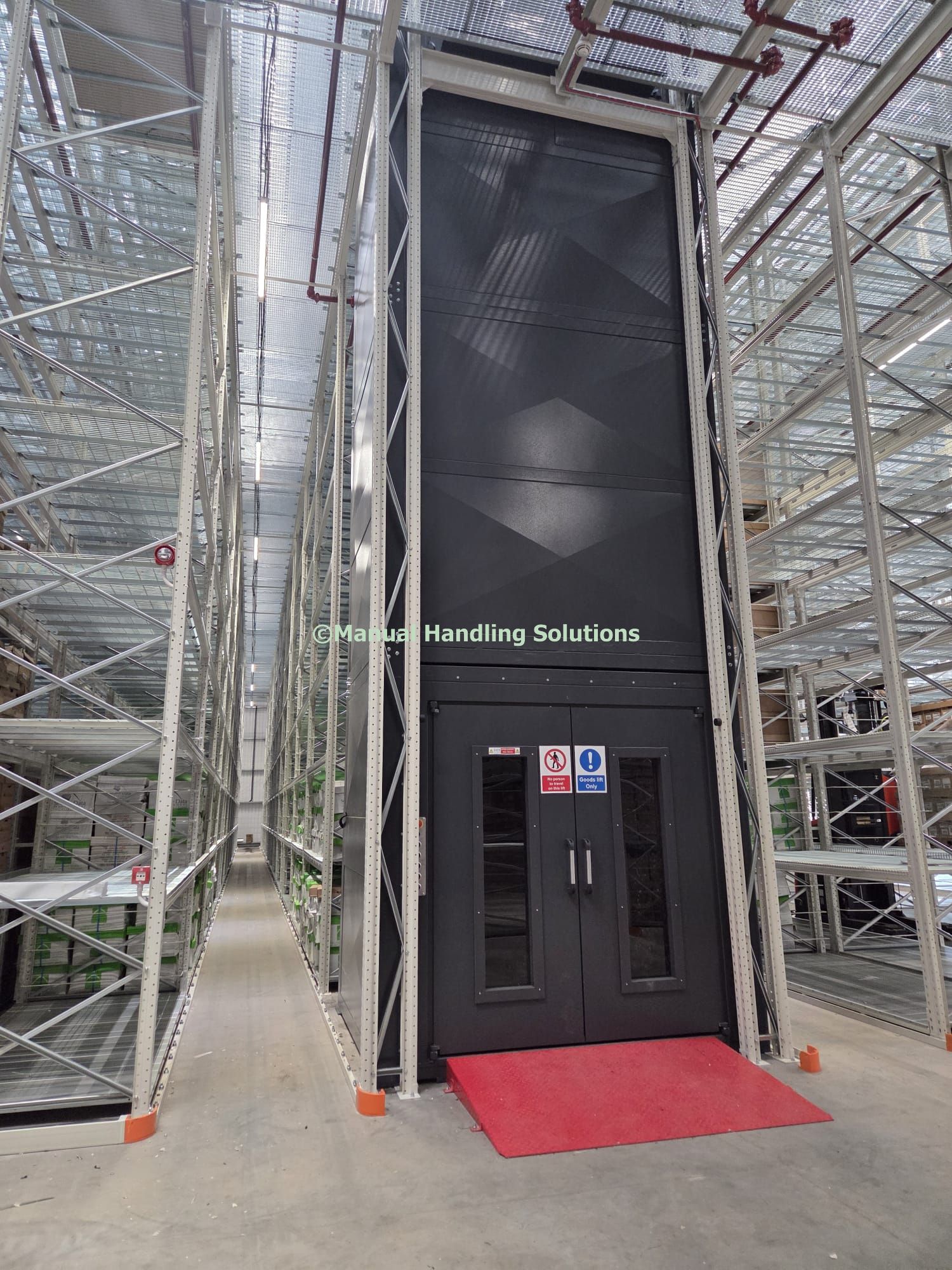

Goods Attendant Lift is self-supporting with the structure manufactured from 120mm x 120mm box section steel with clad infilled panels RAL 7024, lift fitted with 2000mm high twin loading doors cladded with Perspex viewing panels at both entrances and these are fitted with safety interlock system to ensure that the light curtain can only operate in conjunction with the lift controls.

Goods Lift platform fitted with shoot bolts to stabilise the platform and remove any hydraulic ‘bounce’ when fully loaded at the top floor. “Press to Go” one touch controls with emergency stop at all entrances and levels fitted as standard. Goods lift supplied with ramp 120mm x 1760mm x 1250mm. The overall height of the upper-level structure is 2515mm.

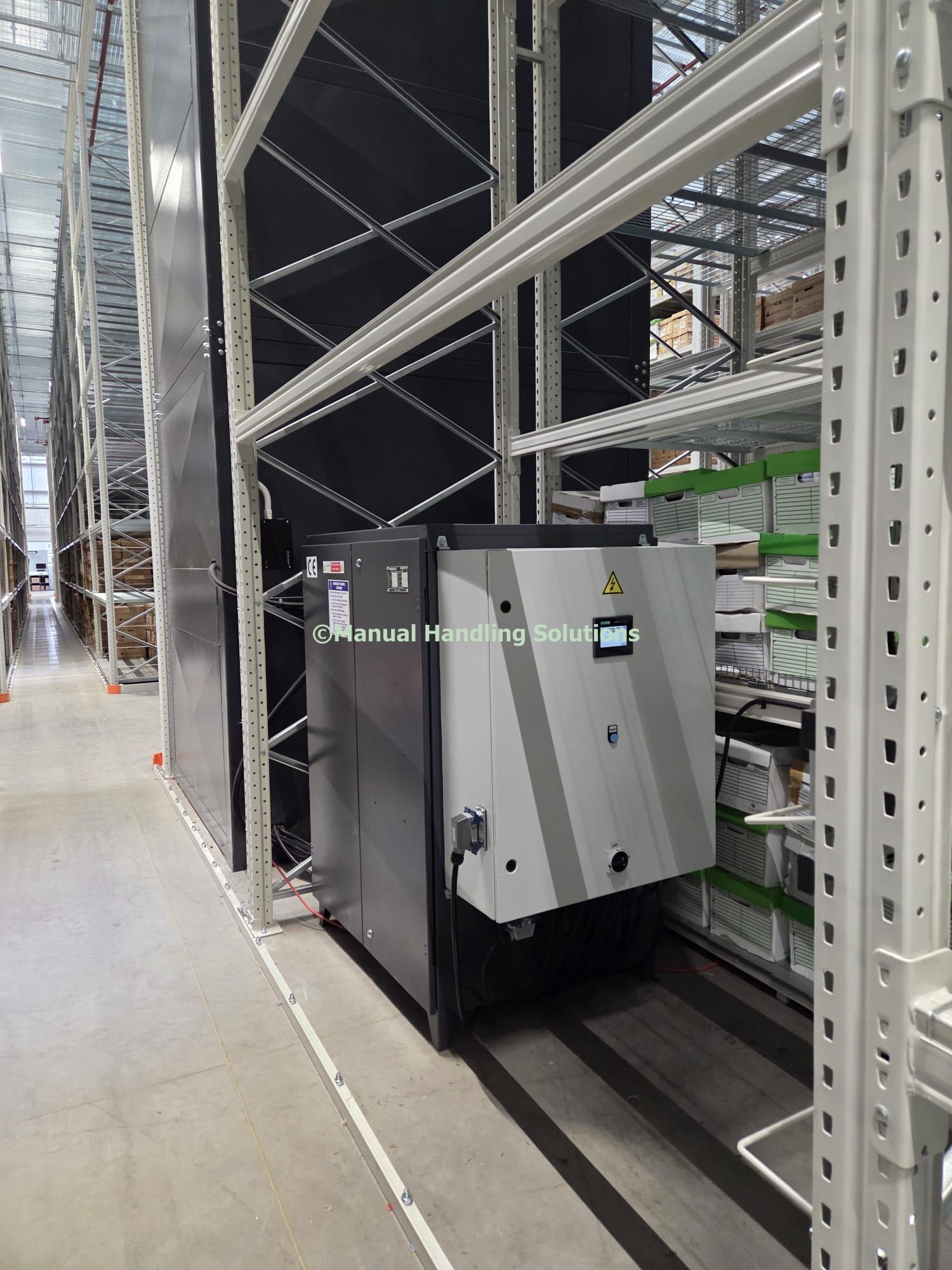

To prevent tampering the power pack and hydraulic system is in enclosed in a lockable steel cabinet and housed within the building size D935mm x L1171mm x H1555mm. Electrics 3 phase, 400v, 5.8Kw control voltage 24-volt IP55.

General Specification

MAN on BOARD
Cabin on the Platform H:2000mm
Goods with 1 Trained Attendant
Light beam curtain
Emergency built-in telephone
Emergency lighting
Emergency down batteries (UPS)
Safety and Protective equipment,
Integrated Parachute Brake System
Fire Alarm Input for Automatic Lowering
Industrial buttons
2-year warranty
Installation; Unit 2, Symmetry Park Coventry Road, Rugby, Coventry, CV23 9LE

Bespoke High Quality Attendant Goods Lifts for Warehouses and Distribution Centres. A trained attendant goods lift is a specific type of heavy-duty lift designed to transport goods between floors while allowing one trained personnel to travel with the load. These lifts feature enhanced safety controls, such as constant pressure buttons and emergency communication systems, for use in settings like warehouses, department stores, and supermarkets where goods require monitoring or handling during transit. They are ideal for situations where stairs are distant, offering a more secure and convenient method of moving freight than a goods-only lift.

Manual Handling Solutions – Attended Goods Lifts offer bespoke custom designed materials handling and lifting equipment. We provide some of the most advanced handling equipment available from standard products to a bespoke solution. Our range of lifting equipment and materials handling products are by far the most sophisticated and technically advanced and manufactured to the highest standard. As a Handling Solutions provider our goal is to work closely with our customers and bring the most technically advanced handling products – solutions to market.

The range of goods lifts from Manual Handling Solutions provides the ideal solution to your vertical movement needs. Widely used in distribution facilities, warehouses, self-storage, retail storage areas, museums, theatres, hotels, and many other environments, mezzanine lifts facilitate the increased use of vertical space in storage areas and make it easy to safely and quickly transfer goods from first floor level to a raised floor or multi floor landings. Mezzanine lifts can also be installed along the edge of the raised floor or in a specially cut aperture within in the mezzanine.

A Goods Attendant Lift from MHS is a cost-effective solution to transport bulky or heavy items. Health and Safety obligations dictate that you must provide a safe and injury free workplace – a Goods Lift can eliminate the need for your staff in carrying heavy, awkward loads up flights of stairs. Need something tailored to your specification then our custom-made lift services can help contact Manual Handling Solutions to discuss your exact requirements. Trade enquires welcome.

Goods lift with trained attendant covering, Rugby, Daventry, Northampton, Braunston, Lutterworth, Coventry, Royal Leamington Spa, Nuneaton, Leicester, Hinckley, Tamworth, Southam, Market Harborough.
