Mezzanine Goods Lift Northampton

Mezzanine Goods Lift Northampton Mezzanine Goods Lift Northampton

500kg hydraulic 2 stop single column Mezzanine Goods Lift same side loading installed through a mezzanine floor, lift installed DC4 Cheaney Drive, Grange Park Industrial Estate, Northampton NN4 5FB with a finished floor level 3685mm.

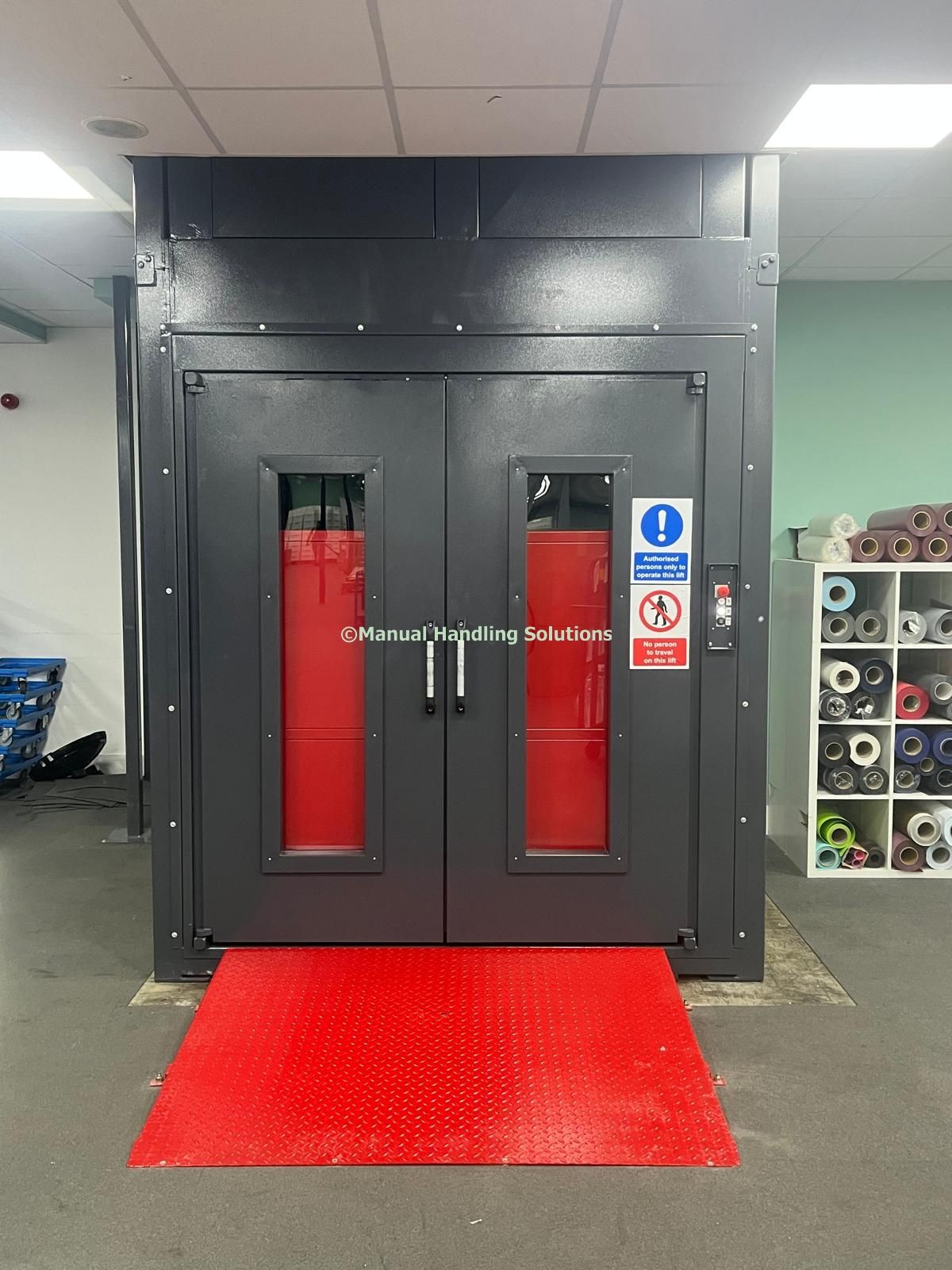

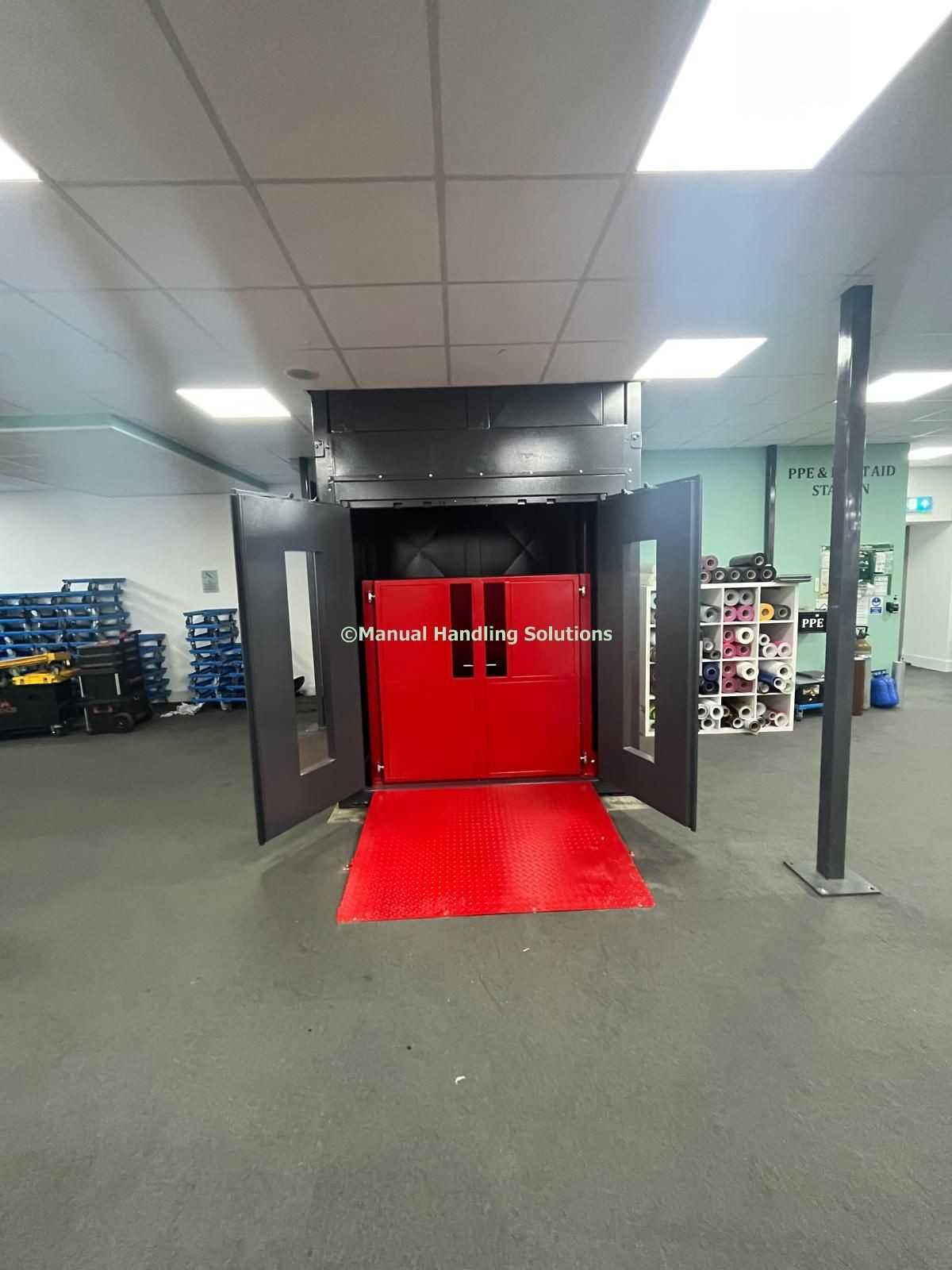

Platform size 1500mm W x 1500mm fitted with 1500mm high infilled panels on the non-loading sides and 1500mm high twin opening interlocked gates finished in Red RAL 3001. To assist loading at the lower level the lift is supplied with loading ramp H120mm x W1550mm x L1250mm finished Traffic Red RAL 3001

Mezzanine Goods lift Northampton is a freestanding self-supporting lift structure manufactured from 100mm x 100mm box section steel with clad infilled panels Grey RAL 7024.

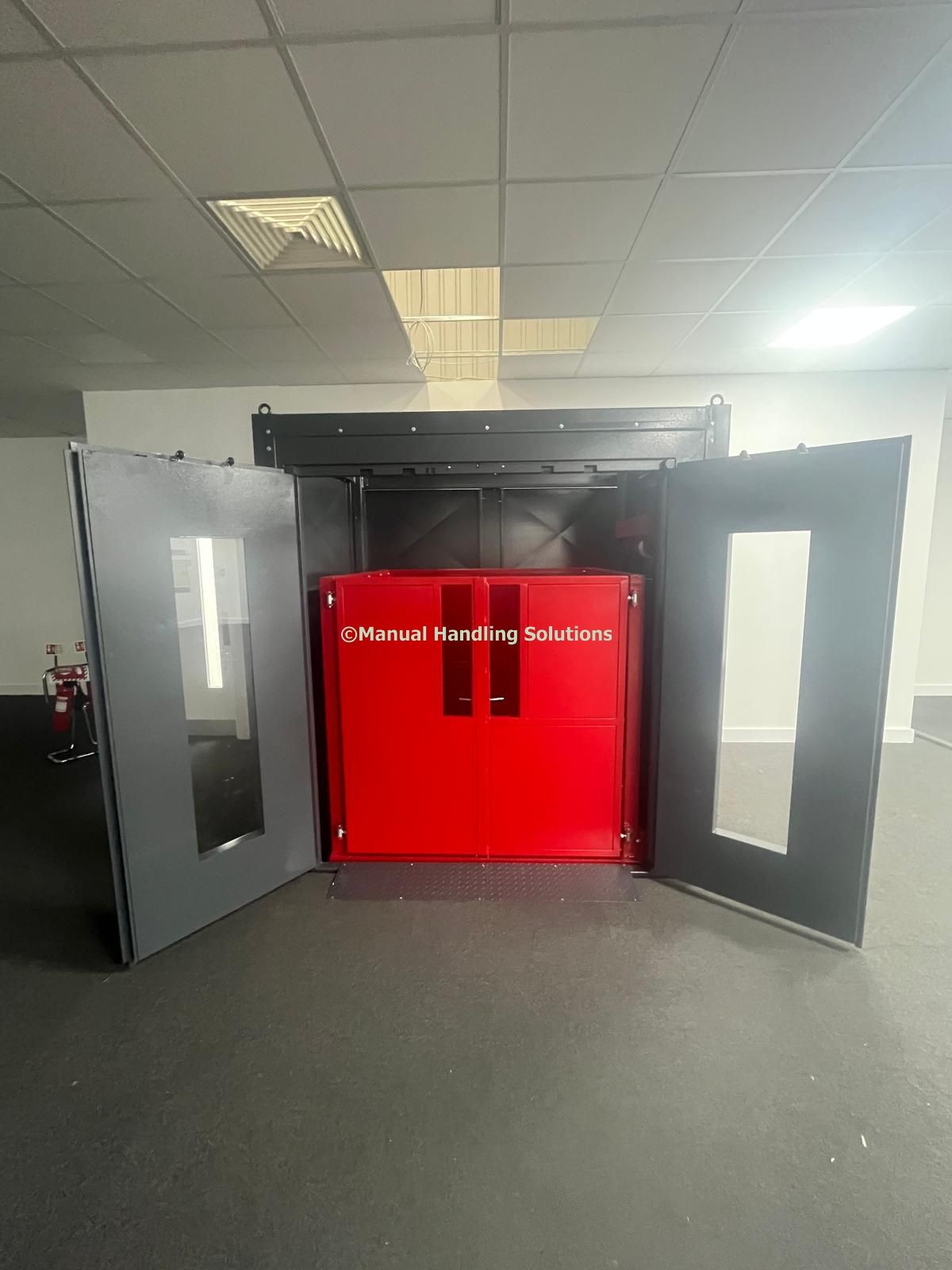

Goods lift fitted with 2000mm high double loading gates cladded with Perspex viewing panels at each level and these are fitted with interlock system to ensure that the loading gates can only operate in conjunction with the lift controls and the lift will be prevented from operating if loading gates on any level are not fully closed. The overall height of the upper-level structure is 2290mm.

Mezz Goods lift fitted with “Press to Go” one touch controls with emergency stop at each level fitted as standard.

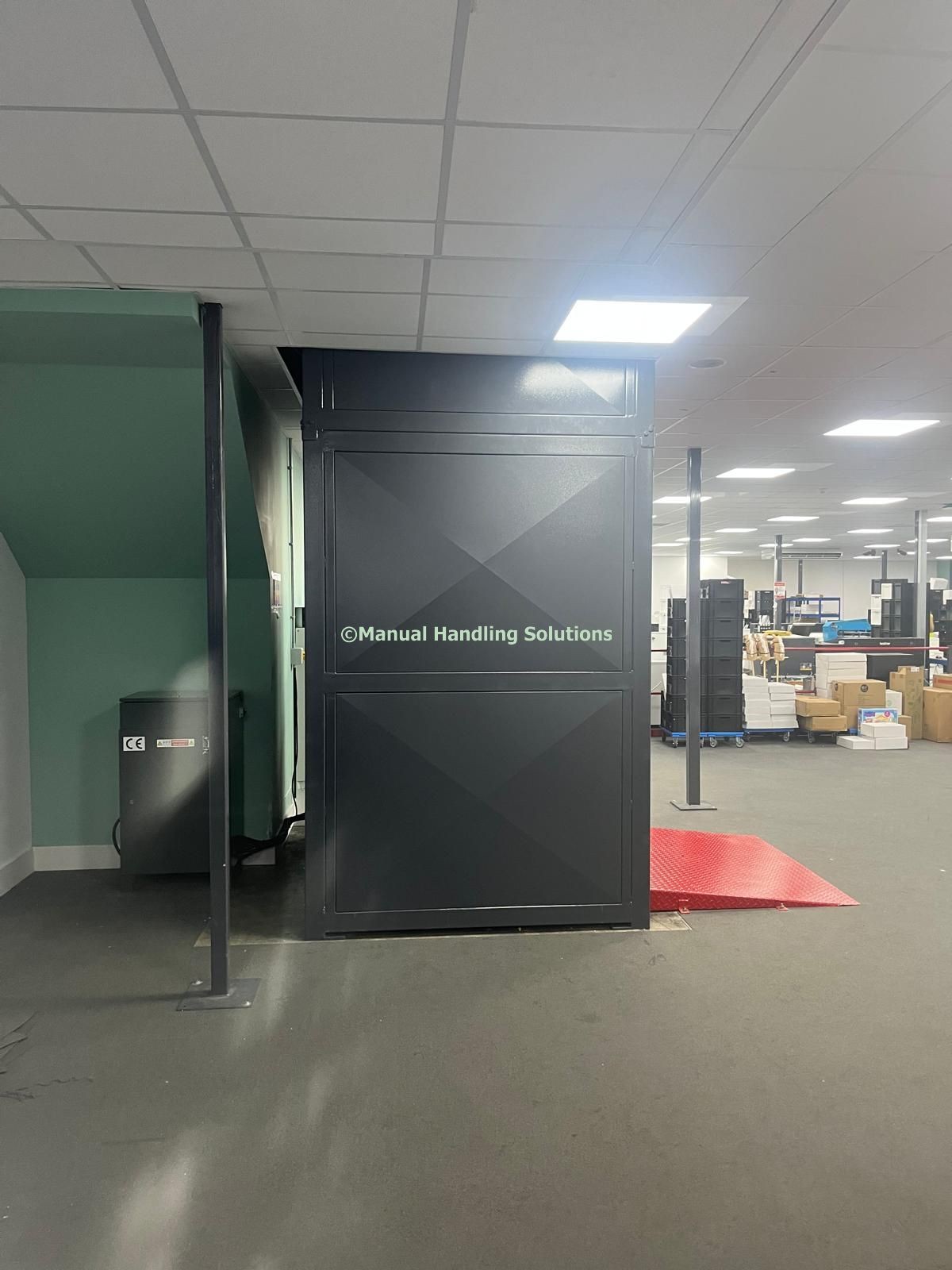

To prevent damage from pallet trucks and forklift trucks the power pack and hydraulic system is in enclosed in a lockable steel cabinet size D500mm x L500mm x H1300mm. Electrics 3 phase, 400v, 3Kw control voltage 24-volt IP55.

General Specification

  • Emergency lowering system when power is cut off.
  • Prewired control box included magnetic starter and overload fuse.
  • Upper-level travel limit switch and overload relief valve
  • Hydraulic cylinders feature emergency velocity fuse if line breaks.
  • Control points are fitted to both ground and upper floor levels.
  • The hydraulic power pack and electrical system housed separately at ground level.
  • The raised height of the lift is governed by a switch system to ensure that the lift platform parks level with upper floor.
  • Lift loaded and unloaded with hand pallet truck.
  • CE plated and built-in compliance with the Machinery Directive2006/42/EC
  • Installation; DC4 Cheaney Drive, Grange Park Industrial Estate, Northampton NN4 5FB
Hydraulic Mezzanine Goods Lift Northampton Mezzanine Floor Goods Lift Northampton Mezzanine Goods Lift Northampton Mezzanine Goods Lift Northampton MHS Mezzanine Goods Lifts Northampton Mezz Goods Lift Northampton Warehouse Mezzanine Goods Lift Northampton picture photo siteby VisualLightBox.com v6.1

If you require an economical solution to lift pallets, trolleys, products from ground floor to a secondary mezzanine level or multi-level flooring consider a free standing / self-supporting mezzanine goods lift. Manual Handling Solutions offer you a one-stop shop for industrial mezzanine goods lifts ideal for factory, warehousing, manufacturing plant, retail deliveries, supermarkets, restaurants, pubs, museums, theatres, and hotels. We offer full project management in design, manufacture, installation, and service.

If you have any questions about our mezzanine goods lifts or would like assistance with finalising your goods lift design, Manual Handling Solutions are available to answer any queries you may have. We are happy to talk you through our diverse product range of bespoke goods lifts and how they can help with the ups and downs of your business. Contact us today to obtain a free custom quote or general advice.

Mezzanine Goods Lifts covering; Northampton, Milton Keynes, Silverstone, Towcester, Rugby, Kettering, Daventry, Wellingborough, Rushden, Olney, Moulton Park.
